Technical Specifications
TM8481T-6873 CI7/1.7 14 4GB 128GB SSD BT W7P 64
The TravelMate TimelineX series features many hours of battery life in a highly mobile design with efficient processing power, wide-ranging communication capabilities, and indispensable security solutions to maximize your potential while on the move. To top it off, this notebook is hazardous-substance-free and integrate energy-conserving features to help save cost and the environment.
*
MAIN SPECIFICATIONS

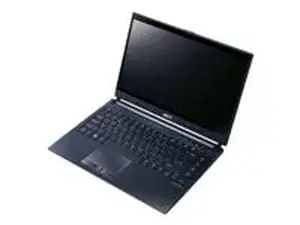

Product Description Acer TravelMate TimelineX 8481T-6873 - Core i7 2637M 1.7 GHz - 14" TFT
Dimensions (WxDxH) 12.9 in x 9.4 in x 0.9 in
Weight 4 lbs
System Type Notebook
Built-in Devices Wireless LAN antenna, Bluetooth antenna
Embedded Security Fingerprint reader
Processor Intel Core i7 2637M / 1.7 GHz ( 2.8 GHz ) ( Dual-Core )
Cache Memory 4 MB - L3 cache
RAM 4 GB (installed) / 8 GB (max) - DDR3 SDRAM - 1066 MHz - PC3-8500
Card Reader 5 in 1
Hard Drive 128 GB Solid State Drive
Display 14" LED backlight ComfyView TFT 1366 x 768 ( WXGA ) - 16:9
Graphics Controller Intel HD Graphics 3000 Dynamic Video Memory Technology 5.0
Audio Output Sound card
Networking Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE♊.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 2.1
Wireless NIC Intel Centrino Advanced-N 6205
Notebook Camera Integrated
Input Device Keyboard, touchpad
Power AC 120/230 V ( 50/60 Hz )
Battery 8-cell lithium ion
Operating System Microsoft Windows 7 Professional (32/64 bits)
Microsoft Office Preloaded Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.
Environmental Standards ENERGY STAR Qualified
Manufacturer Warranty 1 year warranty
General
System Type Notebook
Built-in Devices Wireless LAN antenna, Bluetooth antenna
Embedded Security Fingerprint reader
Width 12.9 in
Depth 9.4 in
Height 0.9 in
Weight 4 lbs
Processor
Processor Intel Core i7 2637M / 1.7 GHz
Max Turbo Speed 2.8 GHz
Multi-Core Technology Dual-Core
64-bit Computing Yes
Features Hyper-Threading Technology, Intel Turbo Boost Technology 2.0
Chipset Type Mobile Intel UM67 Express
Cache Memory
Type L3 cache
Installed Size 4 MB
RAM
Installed Size 4 GB / 8 GB (max)
Technology DDR3 SDRAM - 1066 MHz
Memory Specification Compliance PC3-8500
Form Factor SO DIMM 204-pin
Storage Controller
Type Serial ATA
Storage
Hard Drive 128 GB Solid State Drive
Card Reader
Type 5 in 1 card reader
Supported Flash Memory Cards SD Memory Card, Memory Stick, Memory Stick PRO, MultiMediaCard, xD-Picture Card
Display
Display Type 14" TFT
LCD Backlight Technology LED backlight
Max Resolution 1366 x 768 ( WXGA )
Widescreen Display Yes
Image Aspect Ratio 16:9
Features HDCP, ComfyView
Video
Graphics Processor / Vendor Intel HD Graphics 3000 Dynamic Video Memory Technology 5.0
Audio
Audio Output Sound card
Audio Input Microphone
Notebook Camera
Camera Type Integrated
Input Device(s)
Type Keyboard, touchpad
Networking
Networking Network adapter
Wireless LAN Supported Yes
Wireless NIC Intel Centrino Advanced-N 6205
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE♊.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 2.1
Compliant Standards IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth\.1
Expansion / Connectivity
Expansion Slot(s) 2 memory - SO DIMM 204-pin
Interfaces[ x display / video - HDMI - 19 pin HDMI Type A 1 x Hi-Speed USB 1 x SuperSpeed USB 3.0 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 1 x eSATA / Hi-Speed USB
Power
Power Device External
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Provided 65 Watt
Battery
Technology 8-cell lithium ion
Installed Qty 1
Capacity 6000 mAh
Operating System / Software
OS Provided Microsoft Windows 7 Professional (32/64 bits)
Microsoft Office Preloaded Includes a pre-loaded image of select Microsoft Office 2010 suites. Purchase an Office 2010 Product Key Card or disc to activate preloaded software on this PC.
Software Windows Live Essentials, Bing Toolbar, Microsoft Office 2010 Starter
Environmental Standards
ENERGY STAR Qualified Yes
Manufacturer Warranty
Service & Support 1 year warranty
Service & Support Details Traveler warranty - 1 year
