TM185C-MW-8G - Airmar TM185C Transducer Medium CHIRP Ultra Wide With Garmin 8-Pin MMC

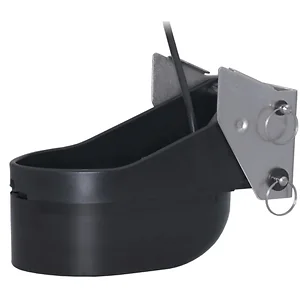

Airmar TM185MW Medium Ultra-Wide Chirp-ready Transom Mount with MMC-8G Garmin 8-Pin MMC Cable

• Depth and fast-response water-temperature sensor
• 1 kW with depth tracking down to 400 m (1,300')
• Medium frequency: 60-100 kHz
• 57° to 73° beamwidth (port/starboard)
• 16° average fore/aft
• 40 kHz of total bandwidth from one transducer
• Medium frequency for superior mid-depth performance and excellent fish-target separation
• Simple installation on transom of the boat
• Great performance at boat speeds below 30 knots
• Easy maintenance and low-cost replacement
• Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready TM185 Medium Ultra-Wide (MW) Transom Mount transducer. The TM185MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column. Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz.

The TM185MW Transom Mount is a 1 kW transducer housed in one of AIRMAR’s most popular housings. Transom models are best suited for small and trailered vessels where a thruhull installation is not practical. Simple to install and ideal for small trailered vessels where a thru-hull may interfere with loading.

• TM185MW Medium Ultra-Wide Chirp-ready Transom Mount
• MMC-8G Garmin 8-Pin MMC Cable

The Airmar TM185C-MW-8G is a 1 kW CHIRP-ready transom-mount transducer designed for marine applications. It provides depth and water temperature sensing capabilities, suitable for small to trailered vessels where a thru-hull installation is not practical. Operating in the medium frequency range of 60-100 kHz, this transducer offers a wide beamwidth from 57� to 73� port/starboard and 16� average fore/aft. This configuration is intended to provide broad coverage under the boat, which can be beneficial for identifying pelagic species in the upper water column or seeking deeper targets. It supports depth tracking down to 400 meters (1,300 feet) and maintains performance at boat speeds below 30 knots. The unit includes a 9-meter (30-foot) cable with an 8-pin Garmin MMC connector, facilitating integration with compatible Garmin systems. Installation is straightforward on the transom, and the design allows for easy maintenance.
