TM185C-MW-14HB - Airmar TM185C Transducer Medium CHIRP Ultra Wide With Humminbird 14-Pin MMC

Airmar TM185MW Medium Ultra-Wide Chirp-ready Transom Mount with MMC-14HBX Humminbird 14-Pin MMC Cable

• Depth and fast-response water-temperature sensor
• 1 kW with depth tracking down to 400 m (1,300')
• Medium frequency: 60-100 kHz
• 57° to 73° beamwidth (port/starboard)
• 16° average fore/aft
• 40 kHz of total bandwidth from one transducer
• Medium frequency for superior mid-depth performance and excellent fish-target separation
• Simple installation on transom of the boat
• Great performance at boat speeds below 30 knots
• Easy maintenance and low-cost replacement
• Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready TM185 Medium Ultra-Wide (MW) Transom Mount transducer. The TM185MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column. Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz.

The TM185MW Transom Mount is a 1 kW transducer housed in one of AIRMAR’s most popular housings. Transom models are best suited for small and trailered vessels where a thruhull installation is not practical. Simple to install and ideal for small trailered vessels where a thru-hull may interfere with loading.

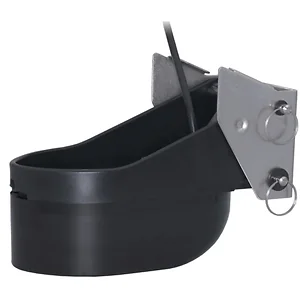

• TM185MW Medium Ultra-Wide Chirp-ready Transom Mount
• MMC-14HBX Humminbird 14-Pin MMC Cable

The Airmar TM185C Transducer Medium CHIRP Ultra Wide, part number TM185C-MW-14HB, is a 1 kW transom-mount transducer designed for marine applications requiring depth and water temperature sensing. It operates on a medium frequency band of 60-100 kHz, providing 40 kHz of total bandwidth. This transducer is suitable for users who need superior mid-depth performance and enhanced fish-target separation, particularly for pelagic species in the upper water column or deeper species within its frequency range. Its ultra-wide beamwidth, ranging from 57-73� port/starboard and 16� average fore/aft, offers extensive coverage under the boat. The unit includes a Humminbird 14-Pin MMC cable for direct integration. It is designed for simple installation on a boat's transom and performs effectively at speeds below 30 knots, making it a practical solution for small and trailered vessels where thru-hull installations are not feasible.
