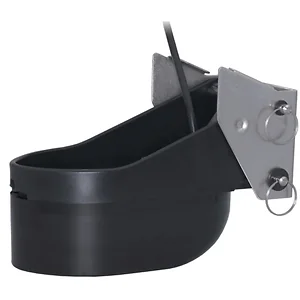

TM185C-MW-12G - Airmar TM185C Transducer Medium CHIRP Ultra Wide With Garmin 12-Pin MMC

Airmar TM185MW Medium Ultra-Wide Chirp-ready Transom Mount with MMC-12G Garmin 12-Pin MMC Cable

• Depth and fast-response water-temperature sensor
• 1 kW with depth tracking down to 400 m (1,300')
• Medium frequency: 60-100 kHz
• 57° to 73° beamwidth (port/starboard)
• 16° average fore/aft
• 40 kHz of total bandwidth from one transducer
• Medium frequency for superior mid-depth performance and excellent fish-target separation
• Simple installation on transom of the boat
• Great performance at boat speeds below 30 knots
• Easy maintenance and low-cost replacement
• Exclusive Xducer ID® technology

AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready TM185 Medium Ultra-Wide (MW) Transom Mount transducer. The TM185MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column. Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz.

The TM185MW Transom Mount is a 1 kW transducer housed in one of AIRMAR’s most popular housings. Transom models are best suited for small and trailered vessels where a thruhull installation is not practical. Simple to install and ideal for small trailered vessels where a thru-hull may interfere with loading.

• TM185MW Medium Ultra-Wide Chirp-ready Transom Mount
• MMC-12G Garmin 12-Pin MMC Cable

The Airmar TM185C Transducer Medium CHIRP Ultra Wide is a transom-mount transducer designed for marine applications requiring depth and water temperature data. This 1 kW unit, part number TM185C-MW-12G, operates within a medium frequency range of 60-100 kHz, providing 40 kHz of total bandwidth. It is suitable for vessels where a thru-hull installation is not practical, offering simple transom mounting. The transducer features an ultra-wide beamwidth, ranging from 57� to 73� port/starboard and 16� average fore/aft, which enhances coverage under the boat. It is engineered for superior mid-depth performance and improved fish-target separation, with depth tracking capabilities down to 400 meters (1,300 feet). The TM185C-MW-12G includes a Garmin 12-Pin MMC cable and is designed to maintain performance at boat speeds below 30 knots, making it appropriate for anglers targeting pelagic species in the upper water column or deeper species.
