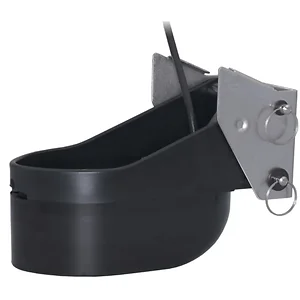

Airmar TM185MW Medium Ultra-Wide Chirp-ready Transom Mount with MMC-0 Bare Wire MMC Cable
Model: TM185C-MW-0AIRMAR’s innovative transducer designs have revolutionized the fishing world, and they continue to do so with the NEW Chirp-ready TM185 Medium Ultra-Wide (MW) Transom Mount transducer. The TM185MW takes transducer design and performance to a whole new level by using medium frequency (60-100 kHz) with an incredible ultra-wide beamwidth ranging from 57-73° port-starboard to 16° average fore-aft. Maximum coverage under the boat is achieved with this medium-frequency transducer, serving anglers who target pelagic species in the upper water column. Airmar’s new Medium Ultra-Wide models are perfect for seeking deeper species with a frequency band from 60-100 kHz.
The TM185MW Transom Mount is a 1 kW transducer housed in one of AIRMAR’s most popular housings. Transom models are best suited for small and trailered vessels where a thruhull installation is not practical. Simple to install and ideal for small trailered vessels where a thru-hull may interfere with loading.
Specifications| Power Rating | 1 kW |
| Transom Angle | 2° to 22° |
| Functions | Depth, Temperature |
| Acoustic Window | Urethane |
| Cable-Length | 9 m (30') |
| Freq Med Wide | 60-100 kHz |
| Housing | Urethane/Stainless Bracket |
| Max Depth | 400 m (1300') |
| Medium-Wide Beamwidth | 57° to 73° beam p/s 16° average f/a |
| Mounting Style | Transom |
| Single or Dual Frequency | CHIRP-Ready Single-Band |
| Weight | 4.2 kg (9.2 lb.) |
The Airmar TM185C Transducer is a 1 kW Medium CHIRP Ultra Wide transom-mount transducer designed for marine applications. It provides depth and water temperature sensing, with depth tracking capabilities down to 400 meters (1,300 feet). Operating within a medium frequency range of 60-100 kHz, this transducer offers a 57� to 73� port/starboard beamwidth and a 16� average fore/aft beam. This configuration is suitable for users targeting pelagic species in the upper water column or seeking deeper species.
Installation is straightforward on the transom of a vessel, making it a practical choice for small and trailered boats where a thru-hull installation might be impractical or interfere with loading. The TM185C-MW-0 model is designed for performance at boat speeds below 30 knots and includes a 9-meter (30-foot) bare wire MMC cable. Its urethane housing and stainless bracket are built for marine environments, and it features Xducer ID� technology.
This transducer is designed for marine applications, specifically for anglers targeting pelagic species in the upper water column or seeking deeper species. Its medium frequency and ultra-wide beamwidth provide maximum coverage under the boat.
The Airmar TM185C-MW-0 transducer provides both depth and fast-response water temperature sensing. It is CHIRP-ready and capable of depth tracking down to 400 meters (1,300 feet).
The box includes the TM185MW Medium Ultra-Wide Chirp-ready Transom Mount transducer and an MMC-0 Bare Wire MMC Cable.
The Airmar TM185C-MW-0 transducer is designed for great performance at boat speeds below 30 knots.
TM185C-MW-0 - Airmar TM185C Transducer Medium CHIRP Ultra Wide With Bare Wires
