TM185C-HW-9N - Airmar TM185C High Wide CHIRP Transducer

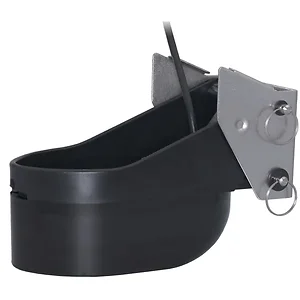

Airmar TM185C Transducer

High Wide CHIRP with Navico 9-Pin Connectivity

Model: TM185-HW

• Depth and fast-response water-temperature sensor
• 1 kW power output with a maximum depth of 152 m (500')
• High Frequency range: 150 kHz to 250 kHz with a constant 25° beamwidth
• Offers 100 kHz of total bandwidth from a single transducer
• Covers popular fishing frequency of 200 kHz along with additional bandwidth
• Provides excellent shallow to mid-depth performance, bottom detail, and fish target separation
• Wide beamwidth enhances coverage for detecting fish in the upper water column
• Constructed with urethane for a transom transducer and stainless steel bracket, suitable for outboard and I/O powered boats
• Recommended for boats up to 10 m (32')
• Ideal for planing and displacement hulls, whether fiberglass or wood
• Also available in thru-hull (B175HW) and in-hull (M285HW) models
• Features exclusive Xducer ID® technology

Enhance your fishing experience with Airmar's innovative wide beam, high frequency Chirp-ready transducers. Operating across a frequency range of 150 to 250 kHz and featuring a fixed 25° beam for all frequencies, this transducer provides superior resolution and wide beam coverage under your boat, ensuring a great display of fish arches. The TM185C is particularly well-suited for both inshore and pelagic fishing, delivering exceptional performance down to 500 feet.

The Airmar TM185C High Wide CHIRP Transducer, part number TM185C-HW-9N, is a transom-mount fishfinder component designed for business and IT buyers in the marine sector. This transducer provides depth and water temperature sensing capabilities, operating with a 1 kW power output to a maximum depth of 152 meters (500 feet). It utilizes a high-frequency CHIRP range from 150 kHz to 250 kHz, maintaining a constant 25� beamwidth across all frequencies. This configuration is intended to deliver enhanced target resolution and fish separation, particularly in shallow to mid-depth environments. The wide beamwidth improves coverage for detecting fish in the upper water column. Constructed from urethane with a stainless steel bracket, it is suitable for outboard and I/O powered boats up to 10 meters (32 feet) with planing or displacement hulls made of fiberglass or wood. This unit integrates with Navico 9-Pin systems and includes Airmar's Xducer ID� technology.
