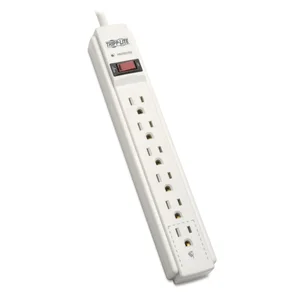

TLP604TEL Surge Suppressor offers economical AC and phone line surge suppression for full protection of workstations, desktop PCs, telecom systems and other sensitive electronics. Built-in AC surge suppression shields connected equipment from damage and performance problems due to transient surges. Set of RJ11 telephone line suppression jacks protect dialup and DSL modem lines, fax machines, cordless phones and more. TLP604TEL offers six total outlets, four-foot (1.2 meters) cord and diagnostic LED to warn of suppressor damage. AC suppression rated at 790 joules shields equipment from surges and line noise. Attractive white suppressor housing with keyhole mounting tabs and one designated transformer plug outlet offers convenient protection of desktop computer equipment and accessories.
- UPC Code: 037332095442
- Nominal Input Voltage(s) Supported: 120V AC
- Recommended Electrical Service: 120V (110-125V)
- Input Cord Gauge Type: 14 gauge; SJT
- Input Cord Gauge (AWG): 14
- Voltage Compatibility (VAC): 120
- Maximum Surge Amps: 35500
- Input Plug Type: NEMA 5-15P
- Input Cord Details: SJT
- Input Cord Length (ft.): 4
- Right-Angle Plug: No
- Frequency Compatibility: 50 / 60 Hz
- Output Receptacles: (6) 5-15R
- Circuit Breaker (amps): 15
- Transformer Accommodation: (2) Yes
- Outlet Orientation: Single row
- Diagnostic LED(s): Yes
- Switches: Combination AC circuit breaker and 2 position red illuminated on/off power switch
- Diagnostic LED Details: Built-in LED confirms suppressor "protection present" (green) status
- AC Suppression Joule Rating: 790
- AC Suppression Response Time: < 1 ns
- Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression
- UL1449 Let Through Rating: 400V
- Automatic Shut-Off: Yes
- Telephone/DSL Protection Details: 1 line
- Network (Ethernet) Protection: No
- Telephone/DSL Protection: Yes
- Material of Construction: Plastic
- Power Cord Color: Light Gray
- Housing Color: Light Gray
- Mounting Holes or Slots: Yes
- Slot or Hole Mount Measurement (Center to Center): Distance between slots = 101 mm; Distance between slot height = 28 mm
- Outlets Measurement (Center to Center): 28.5mm
- Receptacle Color: Gray
- Shipping Dimensions (hwd / in.): 12.50 x 1.60 x 4.90
- Shipping Weight (lbs.): 1.00
- Unit Dimensions (hwd / in.): 10.800 x 1.850 x 1.230
- Unit Weight (lbs.): .82
- Product Certifications: CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); cUL Listed; UL 1449; UL 497A; UL 1363; UL Listed
- Product Compliance: RoHS
- Product Warranty Period (Worldwide): Lifetime limited warranty
- Connected Equipment Insurance (U.S., Canada & Puerto Rico): $20,000 Ultimate Lifetime Insurance
