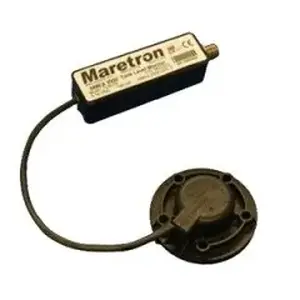

TLM100-01 - Maretron TLM100 Ultrasonic Tank Level Monitor - 40" Depth

The Maretron TLM100 is an advanced ultrasonic tank level monitor designed to accurately detect liquid levels in tanks of up to 40" (1.02m) depth. It transmits real-time data over the NMEA 2000 network, allowing users to monitor tank levels on compatible displays such as the Maretron DSM250.

What sets the TLM100 apart is its ability to calibrate for irregular tank shapes, providing accurate readings for various liquid types including diesel, fresh water, grey water, black water, and oil. The unit can be easily mounted on tanks with an SAE J1810 5-hole mounting pattern or adapted for threaded openings (1.5" NPT or 1.25" BSP) via available adapters.

For black water applications, the optional airlock protects the ultrasonic transmitter from fouling, while an optional focus tube facilitates operation on boats with planing hulls during times of high bow pitch. With NMEA 2000 certification, the TLM100 is integral to Maretron's N2KView vessel monitoring and control system.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Maretron TLM100 Ultrasonic Tank Level Monitor provides accurate liquid level detection for tanks up to 40 inches (1.02m) deep. This device is designed for IT and facilities managers requiring reliable tank monitoring within a networked environment. It integrates with NMEA 2000 networks, transmitting real-time data to compatible displays like the Maretron DSM250, and is a component of Maretron's N2KView system. The TLM100-01 addresses the challenge of monitoring various liquid types, including diesel, fresh water, grey water, black water, and oil, by offering calibration for irregular tank shapes. Mounting options include an SAE J1810 5-hole pattern or adaptation for 1.5" NPT or 1.25" BSP threaded openings. Optional accessories, such as an airlock for black water applications to prevent fouling and a focus tube for planing hull boats, enhance its operational suitability.
