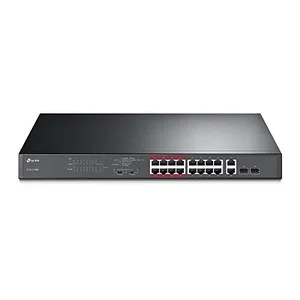

TL SL1218MP complies with the 802.3af/at PoE standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget of up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems. TL SL1218MP is a special designed PoE switch for IP surveillance applications. PoE switch makes surveillance installation simpler, safer and less expensive. With the extend mode, the PoE transmission distance reaches up to 250m which makes it perfect for IP Camera deployment in large area coverage. Priority mode guarantees the important data, such as video surveillance, delivered with the best priority passing the data fabric even when the traffic load is heavy. Hardware switch for easy configuration with no login required.
Technical Specifications
HARDWARE FEATURES Interface 16 PoE+ 10/100Mbps RJ45 Ports 2 10/100/1000Mbps RJ45 Ports 2 Combo Gigabit SFP Slots Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100ohm STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100ohm STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100ohm STP (maximum 100m) 1000BASE-X MMF, SMF Fan Quantity 2 Fans Power Supply 100-240V AC, 50/60 Hz Backup Bandwidth 7.2 Gbps PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant PoE Ports: Port1- Port16 PoE Power Budget: 192W Mac Address Table 8K Max Power Consumption 18.7 W (no PD connected) 217.2 W (with 192W PD connected) Max Heat Dissipation 63.9 BTU/h (no PD connected) 741.2 BTU/h (with 192W PD connected) SOFTWARE FEATURES Advanced Features Compatible with IEEE 802.3at/af compliant devices Port Priority Mode Extend Mode (Up to 250m PoE power supply and data transmission) Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control Transmission Method Store-And-Forward OTHERS Certification FCC, RoHS Package Contents TL-SL1218MP Power Cable Installation Guide Environment Operating Temperature: 0oC to 40oC (32oF to 104oF) Storage Temperature: -40oC to 70oC (-40oF to 158oF) Operating Humidity: 10% to 90% non-condensing Storage Humidity: 5% to 90% non-condensing Item Dimension (L"xW"xH") 21 x 10 x 4 Weight 7.00 LB Warranty Information Limited Lifetime
