Condition: New

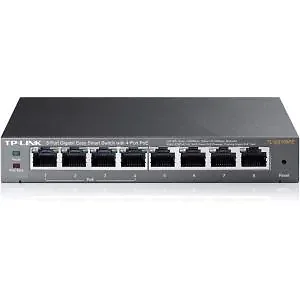

TP-LINK 8-Port Gigabit Easy Smart Switch with 4-Port PoE - 8 Network - Manageable - Twisted Pair - 2 Layer Supported - Desktop 4PORT POE STANDALONE RJ45
The TPLINK TL-SG108PE is an 8-port Gigabit Easy Smart Switch designed for small to medium business environments requiring network expansion with Power over Ethernet (PoE) capabilities. This manageable Layer 2 switch features eight 10/100/1000Mbps RJ45 ports, with four of these ports supporting 802.3af compliant PoE, offering a 55W power budget for connected devices. It is suitable for deploying IP cameras, VoIP phones, or wireless access points without needing separate power outlets. The switch supports essential network management features such as VLANs (up to 32 simultaneously), Quality of Service (QoS) for traffic prioritization, IGMP Snooping, and Link Aggregation. Management is facilitated via a web-based GUI or an Easy Smart Configuration Utility, compatible with Windows operating systems. Its fanless design contributes to quiet operation, making it suitable for desktop placement in various office settings. This device addresses the need for a reliable, manageable network switch that can power compatible devices over Ethernet cabling.
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p Interface
8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m) Fan Quantity
Fanless Power Supply
External Power Adapter(Output: 48VDC / 1.25A) Power Consumption
Maximum (PoE on): 65.2W (220V/50Hz)
Maximum (PoE off): 5.2W (220V/50Hz) PoE+ Ports(RJ45)
Standard: 802.3 af compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 55W Packet Forwarding Rate
11.9Mpps MAC Address Table
4K Packet Buffer Memory
1.5Mb Jumbo Frame
15KB Quality of Service
Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control L2 Features
IGMP Snooping
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN Management
Web-based GUI
Easy Smart Configuration Utility Transmission Method
Store-And-Forward Certification FCC, CE, RoHS Package Contents
TL-SG108PE
Power Adapter
Installation Guide
Resource CD
Rubber Feet System Requirements
Microsoft Windows XP/Vista/7/8/8.1/10 for running Utility Environment
Operating Temperature: 0oC to 40oC (32oF to 104oF)
Storage Temperature: -40oC to 70oC (-40oF to 158oF)
Operating Humidity: 10 percent to 90 percent RH non-condensing
Storage Humidity: 5 percent to 95 percent RH non-condensing
The TL-SG108PE has a PoE power budget of 55W. It supports the 802.3af standard on ports 1 through 4.
Management for this switch can be performed via a web-based GUI or through the Easy Smart Configuration Utility. The utility requires Microsoft Windows XP/Vista/7/8/8.1/10 to run.
The package includes the TL-SG108PE switch, a power adapter, an installation guide, a resource CD, and rubber feet for desktop placement.
Yes, the TL-SG108PE supports VLANs. It can handle up to 32 VLANs simultaneously out of 4K VLAN IDs, with support for MTU/Port/Tag VLAN.
TL-SG108PE - Tplink 8-PORT GIGABIT DESKTOP POE EASY SMART SWITCH, 8 GIGABIT RJ45 PORTS INCLUDING 4 P
