Condition: New

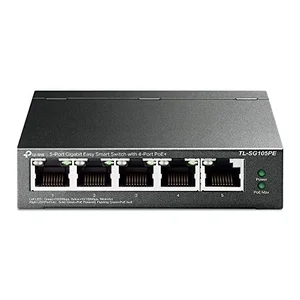

The TPLINK TL-SG105PE is a 5-port Gigabit Easy Smart Switch designed for small to medium business networks requiring both data connectivity and Power over Ethernet (PoE) capabilities. It features five 10/100/1000Mbps RJ45 ports, with four supporting 802.3af/at PoE+ standards, delivering up to 30W per port with a total PoE power budget of 65W. This allows for the simultaneous transmission of power and data over a single Ethernet cable, simplifying deployments for devices like IP cameras, VoIP phones, and wireless access points.
This switch is suitable for IT professionals and network administrators looking to extend network reach and power compatible devices without needing separate power outlets. It offers essential network management features such as VLAN support, traffic prioritization (QoS), network monitoring, and PoE Auto Recovery. Configuration is streamlined via a web-based user interface and the Easy Smart Configuration Utility, providing a practical solution for managing network traffic and power distribution efficiently.
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
Interface
Five 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ohm STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ohm STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ohm STP (maximum 100m)
Fan Quantity
Fanless
Power Supply
External Power Adapter (Output: 53.5 VDC/1.3 A)
PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W
Max Power Consumption
4.5 W (with no PD connected)
75.2 W (with 65 W PD connected)
Max Heat Dissipation
15.4 BTU/h (with no PD connected)
256.3 BTU/h (with 65 W PD connected)
PERFORMANCE
Switching Capacity
10 Gbps
Packet Forwarding Rate
7.44 Mpps
MAC Address Table
2 K
Packet Buffer Memory
1.5 Mb
Jumbo Frame
16 KB
SOFTWARE FEATURES
Quality of Service
Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery
Extend Mode
VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management
Web-based GUI
Easy Smart Configuration Utility
Transmission Method
Store-And-Forward
OTHERS
Certification
FCC, CE, RoHS
Package Contents
TL-SG105PE
Power Adapter
Installation Guide
Rubber Feet
System Requirements
Microsoft Windows for Utility Software
Environment
Operating Temperature: 0oC-40oC (32oF-104oF)
Storage Temperature: -40oC-70oC (-40oF-158oF)
Operating Humidity: 10%-90%RH non-condensing
Storage Humidity: 5%-95%RH non-condensing
Item Dimension (L"x W"x H")
8 x 6 x 5
Weight
2.00 LB
Warranty Information
2 years
The switch supports IEEE 802.3af and 802.3at PoE+ standards. It provides up to 30W for each of its four PoE ports, with a total power budget of 65W.
The package includes the TL-SG105PE switch unit, a power adapter, an installation guide, and rubber feet for placement.
Yes, the switch can be configured and managed using a web-based graphical user interface (GUI) or through the Easy Smart Configuration Utility.
The maximum power consumption is 4.5 W when no Power Devices (PDs) are connected. When fully loaded with 65 W of connected PDs, the maximum power consumption is 75.2 W.
