7 Available
Condition: New

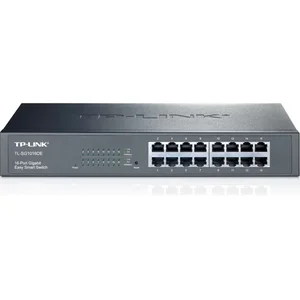

The TL-SG1016DE 16-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks. Network administrators can effectively monitor traffic via Port Mirroring and Loop Prevention.
The TPLINK TL-SG1016DE 16-Port Gigabit Easy Smart Switch is designed for small and medium business networks requiring an upgrade from unmanaged switching. This fanless unit offers 16 10/100/1000Mbps RJ45 ports with auto-negotiation and auto MDI/MDIX, supporting network media types including UTP categories 3, 4, 5, 5e, and 6. It provides a switching capacity of 32Gbps and a packet forwarding rate of 23.8Mpps, with an 8K MAC address table and 512KB packet buffer memory. Key features include Port Mirroring and Loop Prevention for traffic monitoring and network stability. Quality of Service (QoS) supports port-based/802.1p based priority with 4 priority queues, rate limit, and storm control. L2 features such as IGMP Snooping, Link Aggregation, Cable Diagnostics, and VLAN support (up to 32 VLANs simultaneously) are also included. This switch is suitable for environments needing basic managed capabilities to enhance network control and efficiency.
HARDWARE FEATURES
Standards and Protocols:IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface:
16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media:10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity:Fanless
Power Supply:100-240VAC, 50/60Hz PERFORMANCE
Switching Capacity:32Gbps
MAC Address Table:8K
Packet Buffer Memory:512KB
Packet Forwarding Rate:23.8Mpps
Jumbo Frame:10240Bytes SOFTWARE FEATURES
Quality of Service:
Support Port Based/802.1p Based priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features:
IGMP Snooping
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN:
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method:Store-And-Forward OTHERS
Certification:FCC, CE, RoHS
Package Contents:
TL-SG1016DE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
System Requirements:Microsoft Windows 98SE, NT, 2000, XP, Vista Windows 7 or Windows 8, MAC OS, NetWare, UNIX or Linux. Item Dimension (L"xW"xH"):
16 x 10 x 4
Weight:
5.45 lb
Warranty Information:
5-Year
The package contents include the TL-SG1016DE unit, a power cord, an installation guide, a resource CD, a rackmount kit, and rubber feet for flexible deployment.
The switch is compatible with 10BASE-T (UTP category 3, 4, 5 cable), 100BASE-TX (UTP category 5, 5e cable), and 1000BASE-T (UTP category 5, 5e, 6 or above cable), all up to 100m.
The TL-SG1016DE provides features such as Port Mirroring, Loop Prevention, IGMP Snooping, Link Aggregation, Cable Diagnostics, and VLAN support. It also includes Quality of Service (QoS) with port-based/802.1p priority, rate limit, and storm control.
Yes, the TL-SG1016DE comes with a rackmount kit included in the package, allowing for installation in a standard server rack.
TL-SG1016DE - Tplink THE TL-SG1016DE 16-PORT GIGABIT EASY SMART SWITCH IS AN IDEAL UPGRADE FROM AN UN
