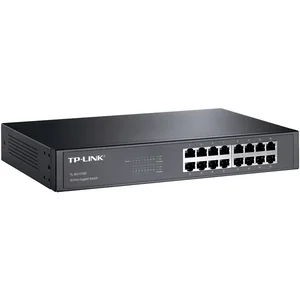

TP-Link's16-Port Gigabit Desktop/Rack-Mount Switch provides an easy way to make the transition to Gigabit Ethernet. All 16 ports support auto MDI/MDIX-no need to worry about the cable type. Moreover, with the innovative energy-efficient technology, the switch can save up to 40 percent of the power consumption, making it an eco-friendly solution for your business network.
The TPLINK TL-SG1016D is a 16-port Gigabit Ethernet unmanaged switch designed for businesses transitioning to or expanding Gigabit network capabilities. This device provides a straightforward plug-and-play solution for increasing network capacity without complex configuration. It is suitable for small to medium-sized businesses or departmental networks requiring reliable, high-speed data transfer for connected devices such as workstations, servers, and network storage. The switch features 16 auto-negotiation RJ45 ports with auto MDI/MDIX, eliminating the need for specific cable types. Its fanless, metal desktop/rackmount design ensures quiet operation and durability. The TL-SG1016D also incorporates energy-efficient technology, which can reduce power consumption by up to 40%, contributing to lower operational costs for IT environments. This unit addresses the need for a simple, robust, and cost-effective method to upgrade or establish a Gigabit Ethernet infrastructure.
Standards and Protocols
IEEE802.3, 802.3u, 802.3ab, 802.3x
CSMA/CD, TCP/IP Basic Function
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode Switch capacity
32Gbps MAC Address Table
8k Forwarding Rate
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
1000BASE-T: 1488000pps/port Transmission Method
Store-and-Forward Ports
16 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) Network Media
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m) LED Indicators
Power, Link/Act, 1000Mbps Safety and Emission
FCC, CE Dimensions (W x D x H)
11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm) Power
100-240VAC, 50/60Hz Warranty
2 Year
For 10Base-T, it supports UTP category 3, 4, 5 cable or EIA/TIA-568 100 STP, both up to 100m. For 100Base-Tx and 1000Base-T, it is compatible with UTP category 5, 5e cable or EIA/TIA-568 100 STP, also up to 100m.
No, all 16 10/100/1000Mbps Auto-Negotiation RJ45 ports support Auto MDI/MDIX, which automatically detects and adapts to the cable type, eliminating the need for crossover cables.
The switch has a switching capacity of 32Gbps. This allows for efficient data transfer across all 16 Gigabit ports.
Yes, the TL-SG1016D features a metal enclosure that supports both desktop and rackmount installations, providing flexibility for deployment in various IT environments.
