93 Available / 2 Sold
Condition: New
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

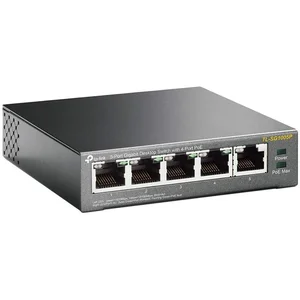

The TPLINK TL-SG1005P is a 5-port desktop network switch designed for small to medium business environments requiring Power over Ethernet (PoE) capabilities. This fanless switch features five 10/100/1000Mbps RJ45 ports, with four of these ports (Port 1 to Port 4) supporting IEEE 802.3af compliant PoE. It automatically detects and supplies power to compatible Powered Devices (PDs), eliminating the need for separate power outlets for devices like IP cameras, VoIP phones, or wireless access points. The switch offers a 56W PoE power budget and a 10Gbps backbound bandwidth, supporting essential network functions such as MAC Address Auto-Learning and Auto-Aging, EEE802.3x Flow Control, and 802.1p/DSCP QoS. This unit is suitable for businesses looking to expand their network connectivity and power compatible devices efficiently without complex configuration.
HARDWARE FEATURES
Interface:5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media:10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity:Fanless
Power Consumption:63.31W (max. with 56w PoE device connected)
4.26W (max. no PoE device connected)
External Power Supply:External Power Adapter(Output: 48VDC / 1.25A)
PoE Ports (RJ45):Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 56W
Backbound Bandwidth:10Gbps
Mac Address Table:2K
SOFTWARE FEATURES
Advanced Features:Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
EEE802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method:Store-And-Forward
OTHERS
Certification:FCC, CE, RoHS
Package Contents:TL-SG1005P, Power Adapter, Installation Guide
Consumption:4.26 watts (max. no PD connected)
63.31 watts (max. with 56w PD connected) Storage Humidity: 5%90%RH non-condensing
Item Dimension (L inchxW inchxH inch)
8 x 5 x 5 Weight
2.00lb Warranty Information
NA
The switch is compatible with UTP category 3, 4, 5 cable for 10BASE-T, UTP category 5, 5e cable for 100BASE-TX, and UTP category 5, 5e, 6 or above cable for 1000BASE-T, all up to 100m. EIA/TIA-568 100 STP cables are also supported for all speeds.
The package includes the TL-SG1005P switch unit, a power adapter, and an installation guide.
The switch provides a total PoE power supply of 56W across its four PoE-enabled ports (Port 1 to Port 4). Each of these ports is 802.3af compliant.
No, the TL-SG1005P switch is designed with a fanless architecture, which contributes to silent operation.
TL-SG1005P - Tplink 5-PORT DESKTOP SWITCH WITH 4-PORT POE
