Product Overview

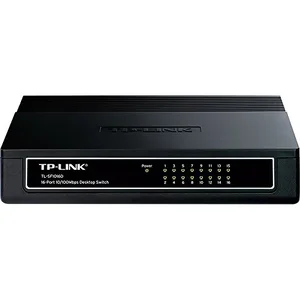

The TL-SF1016D Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1016D can save up to 70% of the power consumption and 70% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
Technical Specifications
Features Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half-duplex mode Supports MAC address auto-learning and auto-aging LED indicators for monitoring power, link, activity Plastic case, desktop or wall-mounting design External Power Adapter supply Specifications Standards and Protocols : IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP Basic Function :
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode Backbound Bandwidth : 3.2Gbps MAC Address Table : 1k Forwarding Rate :
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port Transmission Method : Store-and-Forward Ports : 16 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX) Network Media :
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100U STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100U STP (maximum 100m) LED Indicators : Power, Link/Act (1-16) Safety and Emission : FCC, CE Environment :
Operating Temperature: 0C-40C (32F-104F)
Storage Temperature: -40C-70C (-40F-158F)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing
Power External Power Adapter Power : External Power Adapter Dimensions / Weight
