TL-SF1009P - Tplink 9 Port PoE Plus Switch | Aztek Computers
29+Years
SKU: B0HQCTBJBD |  Mfg. Part: TL-SF1009P  | UPC: 840460603911  |
 1 Reviews  |     Share

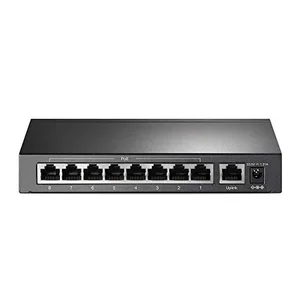

TL-SF1009P - Tplink 9 Port PoE Plus Switch

Special Order
Ships in 1-2 weeks / 1 Sold
Condition: New

$66.61

AUTHORIZED
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

9 10/100 Mbps RJ45 ports8 PoE+ ports transfer data and power on individual cablesWorks with IEEE 802.3af/at compliant PDs Supports PoE Power up to 30 W for each PoE portSupports PoE Power up to 65 W for 8 PoE ports Up to 250 m data and power transmitting range under Extend Mode Priority Mode ensures high priority of ports 1 2 to guarantee the quality of sensitive applicationIsolation Mode allows one-click client traffic separation for higher security and performancePlug and play with no configuration required.

Expert Overview

The TPLINK TL-SF1009P is a 9-port unmanaged network switch designed for small to medium business environments requiring Power over Ethernet (PoE) capabilities. It features eight 10/100 Mbps RJ45 ports that support PoE+, capable of delivering both data and power over a single Ethernet cable. This switch is compatible with IEEE 802.3af/at compliant Powered Devices (PDs), providing up to 30 W per PoE port with a total PoE power budget of 65 W across all eight ports.

This device addresses the need for simplified network deployments by eliminating the requirement for separate power outlets for compatible devices like IP cameras or VoIP phones. It includes an Extend Mode for data and power transmission up to 250 meters, a Priority Mode for ports 1-2 to ensure quality for sensitive applications, and an Isolation Mode for client traffic separation. The TL-SF1009P offers plug-and-play functionality, requiring no configuration, making it suitable for quick integration into existing networks.

Technical Specifications

HARDWARE FEATURES
Interface
9 10/100 Mbps RJ45 Ports (8 10/100 Mbps 802.3af/at PoE+ ports)
AUTO Negotiation
AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity
Fanless
Physical Security Lock
Yes
External Power Supply
External Power Adapter (Output: 53.5VDC / 1.31A)
Packet Forwarding Rate
1.3392 Mpps
PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Ports 1-8
Power Supply: 65 W
Mac Address Table
2K
Jumbo Frame
2 KB
Switching Capacity
1.8 Gbps
Max Power Consumption
3.6 (220/50 Hz. no PD connected)
77.08 (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation
12.28 BTU/h (no PD connected)
262.84 BTU/h (with 65 W PD connected)
SOFTWARE FEATURES
Transmission Method
Store-And-Forward
Advanced Functions
Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1-4 and Ports 1-8, Up to 250 m PoE power supply and data transmission)
Priority Mode Button (Ports 1-2)
Isolation Mode Button (Ports 1-8)
Mac Address Auto-Learning and Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
OTHERS
Certification
FCC, CE, RoHS
Package Contents
TL-SF1009P
Power Adapter
Installation Guide
Environment
Operating Temperature: 0-40 oC (32-104 oF)
Storage Temperature: -40-70 oC (-40-158 oF)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
Item Dimension (L"x W"x H")
12 x 9 x 3
Weight
3.00 LB
Warranty Information
Limited Lifetime

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • TAA Compliant:
  • Country of Origin:
  • TPLINK
  • TL-SF1009P
  • B08J88BHGK
  • 840460603911
  • New
  • 2.16 lbs
  • 5 X 5 X 5
  • Aug 03, 2026
  • Sep 26, 2020
  • Yes
  • China
Product Identifiers: Brand: Tplink • Part #: TL-SF1009P • UPC: 840460603911 • ASIN: B08J88BHGK • Category: Network Switches • TAA Compliant

Frequently Asked Questions

What types of devices are compatible with the PoE+ ports?

The PoE+ ports are compatible with IEEE 802.3af/at compliant Powered Devices (PDs). Each port can supply up to 30 W of power.

What is included in the package with the switch?

The package contents include the TL-SF1009P switch, a power adapter, and an installation guide.

Can this switch extend the range of PoE devices?

Yes, under Extend Mode, the switch supports data and power transmission up to 250 meters for connected PoE devices.

What is the total power budget for all PoE ports?

The switch has a total PoE power budget of 65 W for the 8 PoE ports (Ports 1-8).
