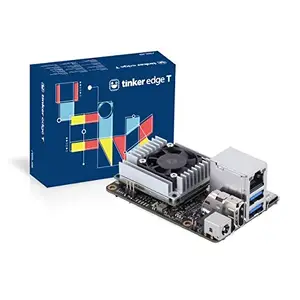

Asus TINKER EDGE T SOC 1.5GHZ QUAD CORE CPU GC7000

SoC
NXP i.MX 8M CPU
Quad-core Arm Cortex-A53 at 1.5GHz,Cortex-M4 GPU
GC7000 Lite NN Processor
Google Edge TPU ML accelerator coprocessor Memory
Dual-CH LPDDR4 1GB Storage
8GB eMMC
1xMicro SD(TF) card slot (pull and push)
Display
1xHDMI with CEC hardware ready
1x22-pin MIPI DSI
USB
2xUSB3.2 Gen1 Type-A ports
1xUSB3.2 Gen1 Type-C OTG port
Carmera Interface
2x24-pin MIPI CSI-2 Internet
PTL8211F-CG Gbit LAN
802.11 b/g/n/ac and Bluetooth 4.1
Internal I/O
1x40-pin headers includes:
- up to 28 x GPIO pins
- up to 1 x SPI bus
- up to 2 x I2C bus
- up to 2 x UART
- up to 3 x PWM
- up to 1 x PCM/I2S
- 2 x 5V power pins
- 2 x 3.3V power pins
- 8 x ground pins
1 x Boot mode switch
1 x 2-pin Reset header
1 x 2-pin DC Fan header
Power requirement
12-19V DC input Operation Temperature
0 - 50 C Non-Operation Temperature
-40 - 85 C Relative Humidity
0% - 85% Operating System Support
Linux Mendel Form Factor
3.37" x 2.125" Item Dimension (L"x W"x H")
6 x 5 x 2
Weight
1.00 LB
Warranty Information
1 Year
