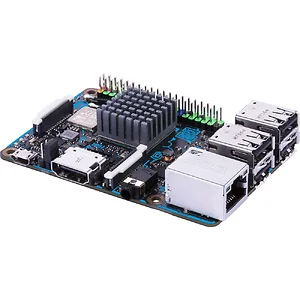

TINKER BOARD S - Asus MB Tinker Board S Quad-Core RK3288 2GB Dual DDR3 ARM Mali-T764 16G Retail

CPU
Rockchip Quad-Core RK3288 processor Memory
2GB Dual Channel DDR3 Graphic
Integrated Graphics Processor
ARM Mali^TM-T764 GPU Storage
16GB eMMC
Micro SD(TF) card slot LAN
RTL GB LAN Wireless Data Network
802.11 b/g/n, Bluetooth V4.0 + EDR Audio
RTL ALC4040 CODEC USB Ports
4 x USB 2.0 Internal I/O Ports
1 x 40-pin header :
- up to 28 x GPIO pins
- up to 2 x SPI bus
- up to 2 x I2C bus
- up to 4 x UART
- up to 2 x PWM
- up to 1 x PCM/I2S
- 2 x 5V power pins
- 2 x 3.3V power pins
- 8 x ground pins
1 x 2-pin contact pin :
- 1 x PWM
- 1 x S/PDIF
1 x 15-pin MIPI DSI
1 x 15-pin MIPI CSI
Accessories
Passive heatsink
User manual Form Factor
3.37 inch x 2.125 inch ( 8.55 cm x 5.4 cm ) Note
1. The ARM Quad-Core Mali GPU supports max. resolution of 4K at 30hz with H.264/H.265 hardware decoder.
2. Do not touch the SoC or heatsink surface directly to prevent possible burn injury. Weight
.32 lb Warranty Information
1 year
