Thunderbolt 3, USB 3.1, and up to 36W charging Thunderbolt? 3 means faster, bigger and more, all through a single cable with a sleek, any-way-up connector ? and ASUS ThunderboltEX 3 is the quick-to-fit expansion card that enables you to upgrade today! Faster At a breathtaking 40Gbps you'll experience faster transfers, with four times (4X) the data speeds of any other cable and twice (2X) the video bandwidth. More connectivity By integrating reversible USB 3.1 Type-C and DisplayPort 1.2, the ThunderboltEX 3 gears you up for compatibility with the latest high-speed devices, from super-fast external drives to 4K UHD displays. ThunderboltEX 3 supports the USB Power Delivery specification for fast, high-power charging of up to 36W, and you can even daisy-chain up to six devices from a single port ? and our card even includes an additional USB 3.1 Type-A connector for total convenience and compatibility! 10-gigabit networking When you fit ThunderboltEX 3 you'll also enjoy peer-to-peer networking at screaming 10Gbps speeds, enabling you to transfer files in the blink of an eye, perform easy PC migrations, or set up small workgroups with shared storage!
Technical Specifications
Chipset Intel ThunderboltTM 3 Controller Interface PCI Express 3.0 x4 (compatible with PCI Express x16/x8/x4 slots) External Connectors 1 x ThunderboltTM 3 port (Type-C) - up to 40Gbps for Thunderbolt devices - up to 10Gbps for USB 3.1 devices - up to 12V/3A, 36W charging support 1 x USB 3.1 port (Type-A, support up to 10Gbps) 1 x 9 pin TB header Operating System Windows 10 Windows 8.1 64-bit Windows 8 64-bit Windows 7 32-bit Windows 7 64-bit Accessories 1 x mini DisplayPort Cable (links graphics output from motherboards or discrete graphics cards DisplayPort to the mini DisplayPort IN port on the ThunderboltEX 3 card) 1 x ASUS TB header cable (connects ASUS motherboards TB header with ThunderboltEX 3 cards TB header) Support Disc ThunderboltTM 3 driver inside Compatible Model Z170-PREMIUM Z170-DELUXE Z170-PRO Z170-A Z170-AR SABERTOOTH Z170 MARK 1 SABERTOOTH Z170 S MAXIMUS VIII EXTREME MAXIMUS VIII HERO MAXIMUS VIII RANGER X99-DELUXE II X99-DELUXE X99-PRO/USB 3.1 X99-PRO X99-A/USB 3.1 X99-A X99-A II X99-E SABERTOOTH X99 RAMPAGE V EXTREME/U3.1 RAMPAGE V EXTREME VGA Supports DisplayPort 1.2 with max. resolution 4096 x 2160 at 60/24Hz Item Dimension (L inchxW inchxH inch) 9 x 6 x 2
Weight 1.00lb
Warranty Information 3 Year Warranty
Product Details
Manufacturer:
Model Number:
ASIN:
UPC:
Condition:
Weight:
Dimensions:
Updated:
Added:
ASUS
THUNDERBOLTEX 3
B01HDUVJ54
889349448632
New
1 lbs
9 X 6 X 5
Apr 10, 2026
Jul 24, 2020
Product Identifiers:
Brand: Asus •
Part #: THUNDERBOLTEX 3 • UPC: 889349448632 • ASIN: B01HDUVJ54 • Category: Other Motherboard Accessories

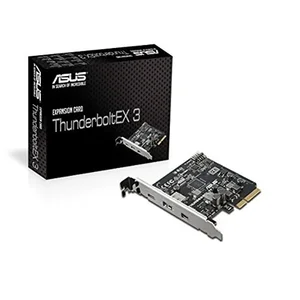

Asus THUNDERBOLTEX 3 Accessory ThunderboltEX 3 Expansion Card for Z170 and X99 Retail
