TDT04F-8RP - Pacer Group 8 Position DT Deutsch Receptacle Repair Kit - 14-18 AWG

8 Position DT Deutsch Receptacle Repair Kit - 14-18 AWG

This DT Deutsch Receptacle Repair Kit is designed for 14-18 AWG applications, featuring size 16 contacts ideal for use with 14 AWG wires. The kit provides the flexibility to use multiple sizes of 16 contacts (18-14 AWG), each with a continuous capacity of 13 amps, within a single shell. The enclosed connectors ensure reliable performance in a variety of settings, with additional components available for broader applications.

Key Features:

• Includes all necessary components to assemble a connector
• One to two extra terminals included
• Cavity plugs provided to seal open circuits

Applications:

• Wire-to-wire connections
• Designed for rugged reliability in enclosed connectors

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K
• EU RoHS/ELV compliant
• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure proper contact alignment and retention
• Redundant silicone seals enhance sealing performance
• Contacts are hand-insertable and removable

Technical Specifications:

• Number of Cavities: 8
• Housing Material: Rectangular plastic receptacle reinforced with glass fiber
• Contact Size: 16, rated for 13 amps
• Wire Size Compatibility: 14 AWG
• Holds: Pins
• Operating Temperature Range: -55°C to 125°C

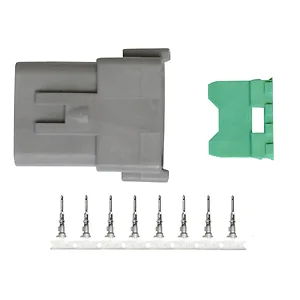

Package Contents:

• (1) 8 position receptacle
• (1) 8 position wedge lock
• (10) pins
• (4) cavity plugs

The Pacer Group TDT04F-8RP is an 8-position DT Deutsch Receptacle Repair Kit, designed for maintaining or repairing wire-to-wire connections in demanding environments. This kit is suitable for IT professionals and technicians working with 14-18 AWG wiring, particularly where size 16 contacts are required. It addresses the need for reliable, sealed connections in applications that benefit from the DT Deutsch standard. The kit includes all components necessary to assemble a connector, such as an 8-position receptacle, an 8-position wedge lock, 10 pins, and 4 cavity plugs. Its design incorporates wedge locks for contact alignment and retention, along with redundant silicone seals to enhance sealing performance. The housing is a rectangular plastic receptacle reinforced with glass fiber, and the assembly is compliant with IP68 and IP6K9K ingress protection levels, as well as EU RoHS/ELV standards. This product is intended for use in systems requiring robust, enclosed connectors with a continuous capacity of 13 amps per contact.
