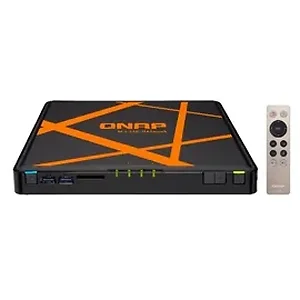

Qnap TBS-453A-8G-US Network Attached Storage TBS-453A-8G-US SSD 4Bay M.2 Dual with 4Port LAN Switch Retail

Compact, near-silent, and versatile, the 4-bay M.2 SSD NASbook TBS-453A is ideal for office meetings and multimedia applications. Featuring a quad-core Intel® 1.6GHz processor, a built-in 4-port network switch, and using up to 4 M.2 SSDs for storage, the TBS-453A not only provides full-fledged NAS functions with RAID protection, but also can act as a switch and share network access with multiple users regardless of being powered on or off. Coupled with its dual HDMI output and 4K H.264 video display & transcoding abilities, the TBS-453A can easily be carried to meetings to present stored files and quality multimedia content. The TBS-453A also supports the open-source Linux® platform that allows you to directly utilize feature-rich Linux® apps, enjoying a private cloud combining storage and IoT applications.

•  Built-in 4-port LAN switch, combined with advanced virtual switch functionality for maximized network flexibility
•  Dual HDMI output with duplicated and extended desktop options
•  Use the TBS-453A as a PC with exclusive QvPC Technology and 4K (H.264) support
•  Supports Linux® OS with direct output via HDMI
•  Store, backup, and share files with snapshots and versioning
•  Wide range 10V ~ 20V DC power input
•  Expand the total raw storage capacity with a UX-800P/UX-500P expansion enclosure
•  Build a karaoke system with the OceanKTV app

Processor
14nm Intel Celeron N3150 quad-core 1.6GHz, burst up to 2.08GHz

GPU
8th generation Intel HD Graphics

System Memory
8GB (2 x 4GB)

Maximum Memory
8GB

Memory Slot
2, SODIMM DDR3L-1600 (For dual-DIMM configurations, you must use a pair of identical DDR3L RAM modules.)

Flash
4GB

Drive Type
4 x M.2 2280/2260/2242 SATA 6Gb/s SSDs

Pre-installed M.2 SSDs
None

Raw Capacity
Optional purchase

Default Capacity (Factory Configuration)
Optional purchase

Network
5 x Gigabit LAN ports (Port 1 and any of the four ports from 2-1 to 2-4 are available to the 2 built-in network cards, and the remaining three ports can work as switch ports.)

USB Port
4 x USB 3.0 and 1 x USB 2.0 ports
Support USB printer, pen drive, and USB UPS, etc.

Video Output
2 x HDMI, up to 4K 2160P Ultra HD support

Audio Input
2 x 3.5mm microphone jack (dynamic microphone only)

Audio Output
1 x built-in speaker, 1 x line out jack (for amplifier or headphone amplifier)

LED
Status/Power, USB, SSD 1-4

Button
Power, USB one-touch-backup, Reset, Volume Up, Volume Down

IR Receiver
support QNAP RM-IR002, RM-IR003 and MCE-compatible Remote Control(DM)

Security
Kensington security slot

Power Consumption (W)
System sleep mode: 0.98W
SSD standby: 13.05W
In operation: 15.2W

Sound Level
Sound pressure (LpAm) :10.8 dB(A)

Working Temperature
0-40^oC

Relative Humidity
5-95% RH non-condensing, wet bulb: 27^oC

Power
DC10V-20V wide input range

Fan
Compact internal fan

Package Contents
NASbook, 65W 19V AC adapter, power cord, quick installation guide, Ethernet cable x 2, remote control, SSD installation kit

Item Dimension (L inchxW inchxH inch)
12 x 4 x 9

Weight
3.44 lb

Warranty Information
2 Years
