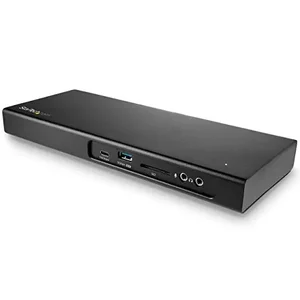

This compact Thunderbolt? 3 dock is built for productivity, transforming your Thunderbolt 3 laptop into a dual-4K workstation with up to 40Gbps of throughput. The high- performance dock features a PCIe M.2 SSD slot for enhanced data storage, three USB ports, an SD card reader, a Gigabit Ethernet port, a downstream Thunderbolt 3 port for daisy-chaining, plus 85W Power Delivery. Create a Dual-4K 60Hz Workstation Great for Ultra HD tasks, the dual-4K docking station supports 4K resolution on two monitors: 1x DisplayPort + 1x Thunderbolt 3 USB-C display (4096 x 2160p @60Hz) USB-C to DP cable or USB-C video adapter may be required 1x 5K monitor at 60H Easy Installation & Deployment Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required. Add Data Storage The Thunderbolt 3 dock's built-in PCIe M.2 SSD enclosure supports transfer speeds up to 1500MB/s with the addition of a PCIe M.2 SSD for ultra-fast data access, enhanced storage, and application buffering and caching. Fast SD Card Access Transfer photos or videos from your SD cards to your Thunderbolt 3 laptop. The dock's SD slot supports SD 4.0 and UHS-II with transfer speeds up to 270MB/s. Connect Your Devices Connect peripherals with three USB ports - one USB-C port (10G) with up to 3A charging and two USB-A ports (5G) with Fast-Charge and Sync. The GbE port (with PXE Boot and WoL support) provides reliable wired network access. 85W Power Delivery Using a single cable, the Thunderbolt 3 dock provides up to 85W of Power Delivery charging. The TAA compliant TB3DK2DPM2 is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Technical Specifications
HARDWARE 4K Support Yes Bus Type Thunderbolt 3 PCI Express Chipset ID Intel - Alpine Ridge DP ASMedia ASM1142 Realtek RTS5411 Realtek RTS5329 C-Media - CM6533 Intel i210AT Displays Supported 2 Fast-Charge Port(s) Yes Industry Standards Thunderbolt 3 USB Battery Charging Specification Rev. 1.2 IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1 PERFORMANCE Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Full Duplex Support Yes Maximum Data Transfer Rate 40 Gbps (Thunderbolt 3) 10 Gbps (USB 3.1 Gen 2) 5 Gbps (USB 3.0) 2 Gbps (Ethernet Full-Duplex) Maximum Digital Resolutions Dual 4K displays - DisplayPort and Thunderbolt 3 USB-C - 4096 x 2160p / 3840 x 2160p at 60Hz Single 4K display - DisplayPort or Thunderbolt 3 USB-C - 4096 x 2160p / 3840 x 2160p at 60Hz Single 5K (5120 x 2880p) display (through Thunderbolt 3 USB-C port) Memory Media Type SD/MMC (Secure Digital/Multimedia Card) SDHC (Secure Digital High Capacity) SDXC (Secure Digital eXtended Capacity) microSD (Micro Secure Digital) (adapter required) microSDHC (Micro Secure Digital High Capacity) (adapter required) microSDXC (Micro Secure Digital eXtended Capacity) (adapter required) PXE Yes Type and Rate Thunderbolt 3 - 40 Gbit/s UASP Support Yes CONNECTOR(S) Connector Type(s) 2 - ThunderboltTM 3 USB-C (24-pin) Female 1 - DisplayPort (20 pin) Female 1 - USB Type-C (24 pin) USB 3.0 Female 1 - SD Slot Female 1 - M.2 (NVMe, M-Key, PCIe x4) Female 1 - USB 3.0 A (Fast-Charge, 9 pin, SuperSpeed) Female 1 - USB Type-A (9 pin) USB 3.0 Female 1 - RJ-45 Female 1 - 3.5 mm Mini-Jack (3 Position) Female 1 - 3.5 mm Audio Female
