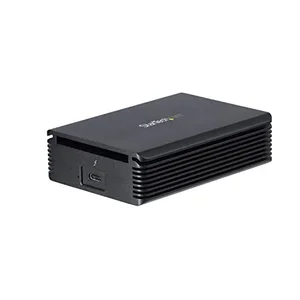

TB310G - Startech Thunderbolt 3 to 10GBase-T Ethernet Adapter - Multi Gigabit Network Adapter - USB Type C Connector

HARDWARE
- Bus Type:
Thunderbolt 3
- Chipset ID:
Intel - Alpine Ridge DSL6340
Tehuti TN4010
Marvell 88X3310PA1
- Industry Standards:
IEEE 802.3an (10GBASE-T)
IEEE 802.3ab (1000BASE-T )
IEEE 802.3u (100BASE-TX )
NBase-T (5GBASE-T)
NBase-T (2.5GBASE-T)
IEEE 802.1q (VLAN Tagging)
IEEE 802.3ad (Link Aggregation)
PERFORMANCE
- Auto MDIX:
Yes
- Auto-Negotiation:
Yes
- Compatible Networks:
10 Gbps/5G/2.5G/1G/100 Mbps
- Full Duplex Support:
Yes
- Jumbo Frame Support:
9K max.
- Promiscuous Mode:
Yes
- PXE:
No
CONNECTOR(S)
- Connector Type(s):
1 Thunderbolt^TM 3 USB-C (24-pin) Female
- External Ports:
1 - RJ-45 Female
SOFTWARE
- OS Compatibility:
Windows 7
Windows 8/8.1
Windows 10
Windows Server 2008 R2
Windows Server 2012 R2
Windows Server 2016
Mac OS 10.11
Mac OS 10.12
Mac OS 10.13
SPECIAL NOTES / REQUIREMENTS
- Note:
Due to technical limitations of the IC solution, max bandwidth is limited to about 7.5 Gbps
- System and Cable Requirements:
Requires a Thunderbolt 3 port with 15W of power
INDICATORS
- LED Indicators:
1 - Solid White - Thunderbolt 3 is connected to host laptop
1 - Solid Green - RJ45 link speed of 1G, 2.5G, or 5G
1 - Solid Orange - RJ45 link speed of 10G
ENVIRONMENTAL
- Humidity:
20%RH - 80%RH
- Operating Temperature:
5^oC to 35^oC
- Storage Temperature:
-20^oC to 50^oC
PHYSICAL CHARACTERISTICS
- Color:
Black
- Enclosure Type:
Aluminum
- Form Factor:
Separate Cable
WHATS IN THE BOX
- Included in Package:
1 - Network Adapter
1 - Thunderbolt 3 Cable
1 - Travel Pouch
1 - Quick-Start Guide
Item Dimension (L inchxW inchxH inch)
7 x 6 x 3
Weight
1.00lb
Warranty Information
2 Year Warranty
