Technical Specifications
Hardware
Ports:2
Interface:RJ45 (Gigabit Ethernet)
Bus Type:Thunderbolt
Interface:USB 3.0
Industry Standards:IEEE 802.3i (10BASE-T), IEEE 802.3u (100BASE-T), IEEE 802.3ab (1GBASE-T), IEEE 802.1Q VLAN tagging, IEEE 802.3x full duplex flow control, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3az (EEE Energy Efficient Ethernet)
Chipset ID:
Intel - DSL2210 (Thunderbolt)
Broadcom - BCM57762 (LAN)
ASMedia - ASM1042A (USB 3.0) Connector(s)
Connector Type(s):
1 - Thunderbolt (20-pin) Male
1 - RJ-45 Female
1 - USB 3.0 A (9 pin SuperSpeed) Female Performance
Maximum Data Transfer Rate:
10 Gbps (Thunderbolt)
5 Gbps (USB 3.0)
2 Gbps (Ethernet Full Duplex)
UASP Support:Yes
Compatible Networks:10/100/1000 Mbps
Auto MDIX:Yes
Full Duplex Support:Yes
Jumbo Frame Support:9.6K max. Software
OS Compatibility:
Windows 8 / 8.1 (32/64bit)
Mac OS 10.8.4 and up (Tested up to 10.10)
Color
Silver
Enclosure Type
Plastic Indicators
LED Indicators:
1 - Ethernet Link Speed
1 - Ethernet Activity
Included in Package

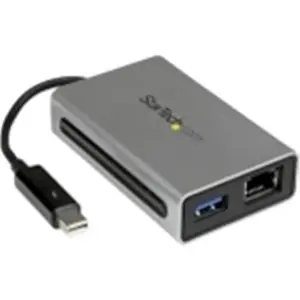

1 - Thunderbolt Adapter
1 - Instruction Manual Item Dimension (L"xW"xH"):
6.89 x 5.51 x 1.26
Weight:
0.29 lb
Warranty Information:
2 Years
