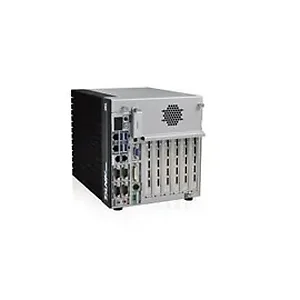

TANK-860-QGW-I5/8G/4A-R10 - Iei Technology IEI System TANK-860-QGW-i5/8G/4A-R10 Core i5-4400E 2x4GB DDR3 VGA/DVI-I/Displ

SBC Form Factor
Intel 4th Gen Core i5-4400E 2.7GHz, 37W Cooling method / System Fan
Fanless Chipset
Intel HM86 Memory Max.
2 x 204-pin DDR3 SO-DIMM preinstalled two 4 GB
(Maximum memory size supported by the system is 16 GB) Storage
HDD: 2 x 2.5" SATA 6Gb/s HDD/SSD Bay
CFast: 1 x CFast Drive Bays
2 x 2.5" SATA 6Gb/s HDD/SSD Bay Digital I/O
8-bit digital I/O, 4-bit input/4-bit output Display
1 x VGA, 1 x DVI-I, 1 x DisplayPort I/O Interface
1 x Display
1 x VGA
1 x HDMI
2 x USB 2.0
4 x USB 3.0
4 x RS-232
2 x RS-422/485
2 x RJ-45
1 x PCIe GbE by Intel I210
1 x PCIe GbE by Intel I217LM Input
DC Jack: 9-36V DC Power consumption
19V at 3.34A
(Intel Core i5-4400E with 4 GB memory) Operating Temperature
-20^oC - 60^oC with air flow(SSD) Humidity
5% - 95%, non-condensing iRIS
1 x iRIS-2400 (optional purchase) Material
Die-casting aluminum Expansion Slots
PCI/PCIe :
2 slots: 2 x PCIe x8 (physical PCIe x16 slot)
4 slots: 2 x PCIe x8 (physical PCIe x16 slot) + 2 x PCI
6 slots: 1 x PCIe x8 (physical PCIe x16 slot) + 2 x PCIe x4 + 3 x PCI
PCIe Mini :
4 slots: 1 x Full-size (baseboard)
6 slots: 1 x Full-size (baseboard) Item Dimension (L"xW"xH")
7 x 11 x 9 Weight
11.02 lb Warranty Information
2 Years
