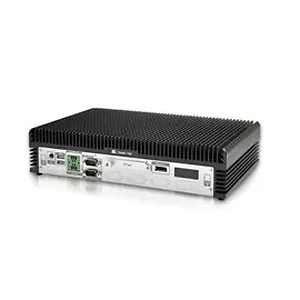

TANK-760-HM86I-I5/4G-R10 - Iei Technology IEI System TANK-760-HM86i-i5/4G-R10 Core i5-4400E 4GB DDR3 VGA/HDMI/DisplayPor

SBC Form Factor
Intel Core i5-4400E 2.7 GHz
Chipset:Intel HM86
System Memory
2 x 204-pin DDR3 SO-DIMM slot.
Pre-installed one 4GB SO-DIMM
(system max: 16 GB) Cooling method / System Fan
Fanless Drive Bays
2 x 2.5" SATA 6Gb/s HDD/SSD bay I/O Ports
4 x USB 3.0
2 x USB 2.0
Ethernet:
2 x RJ-45
1 x PCIe GbE by Intel I210
1 x PCIe GbE by Intel I217LM
COM Port:
4 x RS-232 (DB-9, with isolation)
2 x RS-232/422/485 (DB-9, with isolation)
Digital I/O:8-bit digital I/O, 4-bit input/4-bit output
CAN-bus:2 x Phoenix terminal block with isolation
Display:1 x VGA, 1 x HDMI, 1 x DisplayPort
Resolution:
VGA: Up to 1920 x 1200 at 60Hz
HDMI: Up to 2500 x 1600 at 60Hz
DisplayPort: Up to 2500 x 1600 at 60Hz
Audio:1 x Line-out, 1 x Mic-in
Wireless:1 x 802.11b/g/n (optional)
Other:Reserved IO window for PCIe Mini card expasion Operating Temperature
-20^oC - 70^oC with air flow(SSD) Color
Black C + Silver Expansion Slots
PCIe:Mini 3 x Full Size (one co-lay mSATA) Item Dimension (L"xW"xH")
13 x 8 x 3 Weight
19.84 lb Warranty Information
2 Years
