Special Order
Ships in 1-2 weeks
Condition: New

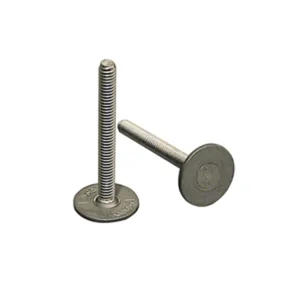

The Weld Mount 1.5" Tall Stainless Panel Stud (part number 83224) is a fastening component designed for securing wire clamps and other small components to composite surfaces. Each stud features a 0.62" diameter base plate and a 1.5" tall stud with #8 x 32 threads. This product is suitable for IT infrastructure and other B2B applications requiring robust, low-profile mounting points on panels or consoles. Originally used for mounting dash panels to consoles, its application has expanded to general component securing. The stainless steel construction provides durability, while its tensile strength of 300 lbs., shear strength of 375 lbs., and maximum torque load of 45 inch/lbs. indicate its capacity for securing various loads. This product addresses the need for reliable, permanent attachment points in environments where composite surfaces are prevalent.
These panel studs are primarily used for securing a wide range of wire clamps and other small components to composite surfaces. They were originally utilized for mounting on the backside of dash panels for console integration.
Each stud has a 1.5" tall stud with #8 x 32 threads. The base plate, which secures the stud to the surface, measures 0.62" in diameter.
The studs have a tensile strength of 300 lbs. and a shear strength of 375 lbs. The maximum torque load they can withstand is 45 inch/lbs.
This product is supplied in a quantity of 15 studs per package.
83224 - Weld Mount 1.5" Tall Stainless Panel Stud w/0.62" Base & #8 x 32 Threads - Qty. 15
