15 Available
Condition: New

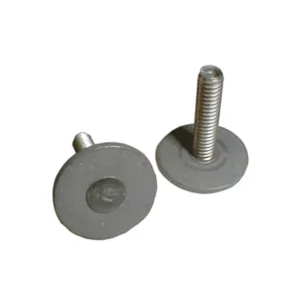

The Weld Mount .75" Tall Stainless Panel Stud (part number 83212) is designed for securing components to composite surfaces. This stainless steel stud features a #8 x 32 thread and a 0.62-inch diameter base plate, with a stud height of 0.75 inches. Originally utilized for mounting on the backside of dash panels to consoles, its application has expanded to securing various wire clamps and small components. It offers a tensile strength of 300 lbs., a shear strength of 375 lbs., and a maximum torque load of 45 inch/lbs. This product is suitable for IT and industrial environments requiring robust, permanent fastening solutions on composite materials, providing a reliable anchor point for cable management or equipment installation.
These panel studs are primarily used for mounting on the backside of dash panels to consoles and for securing a wide range of wire clamps and other small components to composite surfaces.
The stud is 0.75 inches tall with a #8 x 32 thread. It features a base plate that is 0.62 inches in diameter.
The Weld Mount panel stud has a tensile strength of 300 lbs., a shear strength of 375 lbs., and a maximum torque load of 45 inch/lbs.
The stud is made from stainless steel, as indicated by "Stainless Panel Stud" in the product title and description.
83212 - Weld Mount .75" Tall Stainless Panel Stud w/0.62" Base & #8 x 32 Thread - Qty. 15
