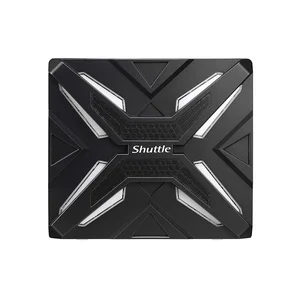

Shuttle, the leading mini-PC designer, introduces its new Gaming Mini-PC model, supports the 7th Gen Intel Core i7 processor and set to deliver the best performance for gaming and VR use.
Technical Specifications
FORM FACTOR Shuttle Small Form Factor PROCESSOR Support Kabylake/Skylake 95W Core i3/i5/i7 LGA 1151 CPU processor CHIPSET Intel Z270 Express chipset MEMORY (4) DDR4 2133/2400MHz support dual channel up to 64GB (16GB4) VIDEO OUTPUT Integrated in CPU AUDIO Realtek ALC662 5.1 channel High Definition Audio ETHERNET Intel Chip i2112 10Mb/s,100Mb/s,1Gb/s operation Support Wake-ON-LAN function STORAGE INTERFACE SATA3 6.0Gb/s ONBOARD CONNECTORS (2) 4 Pin fan connector (4) SATA 6.0 connectors (1)ATX main power (210) (1) ATX 12V power (22) FRONT PANEL (2) USB 3.0 Port (1) Line out jack (1) Power button / Power LED (1) Turbo button / Turbo LED BACK PANEL (4) USB 2.0 Port (4) USB 3.0 Port (1) Line in jack (1) Line out jack (1) Audio MIC in (1) HDMI (2) DisplayPort (2) LAN (1) CMOS clear button (3) Antenna hole DRIVE BAYS (4) 3.5 HDD bay POWER 80 Plus 500W power supply Input:100 - 240V AC ACCESSORIES XPC Multi-Language quick guide XPC DVD Driver SATA cable x4(For HDD) CPU Thermail Grease Power cord Screw package EXPANSION SLOT (1) PCI-E X16 slot (1) PCI-E X4 slot (2) M.2 2280 type M socket (1) M.2 2230 type A,E key socket OS SUPPORT Windows 7 64bit (Skylake) Windows 10 64bit Item Dimension (L inchxW inchxH inch) 18 x 11 x 9 Weight 11.00lb Warranty Information 3 Years
