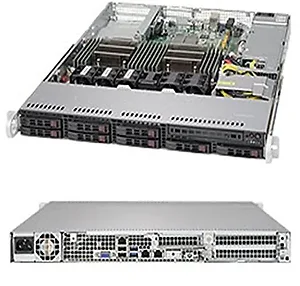

sys1028rtdw - Supermicro System SYS-1028R-TDW 1U Xeon E5-2600v3 1TB DDR4 SATA PCI-Express 600W Retail

Motherboard
Super X10DDW-i

Processor/Cache
CPU
Intel Xeon processor E5-2600 v3 family (up to 145W TDP )
Dual Socket R3 (LGA 2011)
Cores / Cache
Up to 18 Cores / Up to 45MB Cache
System Bus
QPI up to 9.6 GT/s System Memory
Memory Capacity
16x 288-pin DDR4 DIMM sockets
Up to 1TB ECC LRDIMM, 512GB ECC RDIMM
Memory Type
2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
RDIMM: 32GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory) On-Board Devices
Chipset
Intel C612 Express chipset
SATA
SATA3 (6Gbps) RAID 0, 1, 5, 10
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers
Intel i350 Dual Port Gigabit Ethernet LAN
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8211E PHY (dedicated IPMI)
Video
ASPEED AST2400 BMC Input / Output
Serial ATA
8x SATA3 (6Gbps) ports
LAN
2x RJ45 Gigabit Ethernet ports
1x RJ45 Dedicated IPMI LAN port
USB
3x USB 3.0 ports (2 rear + 1 Type A)
4x USB 2.0 ports (2 rear + 2 via headers)
Video
1x VGA port
Serial Port / Header
1x Fast UART 16550 header
DOM
2x SuperDOM (Disk on Module) ports Management
Software
Intel Node Manager
SuperDoctor 5
IPMI 2.0
NMI
SPM
SUM
Watch Dog
Power Configurations
ACPI / APM Power Management
Power-on mode for AC power recovery Form Factor
1U Rackmount

Available Colors
Black

Front Panel
Buttons
Power On/Off button
UID button
LEDs
Power status LED
HDD activity LED
2x Network activity LEDs
Universal Information (UID) LED Expansion Slots
PCI-Express
2x PCI-E 3.0 x8 full-height, Half-length slots
1x PCI-E 3.0 Low-profile slot

Drive Bays
Hot-swap
8x 2.5" Hot-swap SATA HDD trays

Backplane
SAS/SATA HDD Backplane System Cooling
Fans
5x 4cm heavy-duty counter-rotating fans w/ air shroud and optimal fan speed control

Power Supply with Digital Switching Control and PMBus 1.2
600W AC power supply w/ PFC (24-pin)
AC Voltage
100-240 V, 50-60 Hz, 7.5 Amp max
+5V
18 Amp
+5V standby
3 Amp
+12V
49 Amp
-12V
0.5 Amp
+3.3V
15 Amp
Certification
95%+Platinum Level Certified Platinum Certified System BIOS
BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
APM 1.2
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1

RoHS
RoHS Compliant Item Dimension (L"xW"xH"):
25.6 x 17.2 x 1.7

Weight:
46 lb

Warranty Information:
1 Year
