SKU: WFIRST2MHC |  Mfg. Part: SYS-E200-9A  | UPC: 672042290932  |
 3 Reviews  |     Share Make an offer

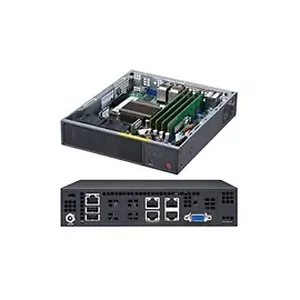

SYS-E200-9A - Supermicro Mini-1U Atom C3558 256GB 1x2.5SSD PCIE

Special Order
Ships in 1-2 weeks
Condition: New

$501.36  $676.84
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

The Supermicro SYS-E200-9A Mini-1U server features an Intel Atom processor C3558 with up to 256GB DDR4 ECC memory capacity. It is equipped with 8 SATA3 ports, quad Gigabit Ethernet LAN, and IPMI support for efficient management.

Technical Specifications

  • Motherboard: Super A2SDi-4C-HLN4F
  • Processor/Cache: Intel Atom processor C3558, FCBGA 1310, 16W TDP support
  • System Memory: Supports up to 256GB DDR4 ECC RDIMM, Supports up to 64GB DDR4 ECC/non-ECC UDIMM
  • On-Board Devices: Chipset: System on Chip, SATA: 8 SATA3 ports, Network Controllers: Quad Gigabit Ethernet LAN, IPMI 2.0 support
  • Input/Output: SATA3 port, 4 RJ45 Gigabit Ethernet LAN ports, 2 USB 2.0 ports, VGA port, TPM 2.0 header
  • Chassis: Mini-1U form factor, Model: CSE-101F
  • Dimensions: Available Colors: Black
  • Expansion Slots: M.2 Interface: PCI-E 3.0 x2 or SATA3, Form Factor: M Key 2242/2280
  • Drive Bays: Internal 2.5" fixed SSD bay with bracket
  • System Cooling: 2x 40mm chassis fans
  • Power Supply: 60W lockable power adapter
  • System BIOS: 128Mb SPI Flash with AMI BIOS, PCI 3.0, ACPI 5.0, UEFI 2.4
  • Management: IPMI 2.0, KVM with dedicated LAN, NMI, SuperDoctor 5, Watch Dog
  • Operating Environment/Compliance: RoHS Compliant, Operating Temperature: 0C to 40C, Operating Relative Humidity: 8% to 90%
  • Item Dimension (LxWxH): 6 x 15 x 11 inches, Weight: 6.50lb, Warranty: 1 Year
Manufacturer Part Number:SYS-E200-9AUPC:672042290932

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Country of Origin:
  • Supermicro
  • SYS-E200-9A
  • B07944RYM7
  • 672042290932
  • New
  • 6.75 lbs
  • 9 X 2 X 8
  • Apr 25, 2026
  • Dec 15, 2017
  • United States
Product Identifiers: Brand: Supermicro • Part #: SYS-E200-9A • UPC: 672042290932 • ASIN: B07944RYM7 • Category: Computer Servers
