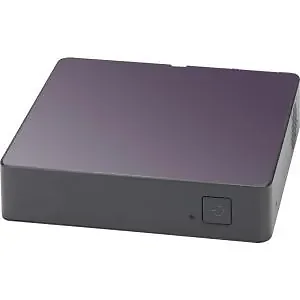

SYS-E200-8B - Supermicro System SYS-E200-8B Celeron J1900 FCBGA1170 8GB DDR3 SATA USB Mini-ITX Retail

Motherboard
Super X10SBA

Processor/Cache
CPU
Socket FCBGA1170
Intel Celeron Processor J1900
2M Cache, up to 2.42 GHz, 10W
(formerly Bay Trail) System Memory
Memory Capacity
2x 204-pin SO-DIMM socket
Supports up to 8GB non-ECC DDR3 1333MHz memory (Dual Channel)
Some 1600MHz memory can be used, but memory capacity will operate at 1333MHz
Memory Type
1333/1066MHz DDR3 SO-DIMM, 204-pin gold-plated DIMMs
DIMM Sizes
4GB, 2GB
Memory Voltage
1.35 V On-Board Devices
Chipset
Intel J1900 System on Chip
SATA
SATA 2.0 (3Gbps) from Intel SoC
SATA 3.0 (6GbpS) from Marvell 88SE9230 with HW RAID 0, 1, 10 (Windows only)
Network Controllers
Dual Intel I210-AT Gigabit Ethernet LAN ports
Graphics
Intel HD Graphics
USB 3.0
Intel SoC
COM Ports
Nuvoton NCT5104D Input / Output
Serial ATA
4x SATA3 (6Gbps) ports
2x SATA2 (3Gbps) ports
LAN
2x RJ45 Gigabit Ethernet LAN ports
USB
1x USB 3.0 port
1x USB 2.0 port
Display
1x Display Port, 1x HDMI, 1x VGA, 2x Independent Displays
DOM
DOM (Disk on Module) power connector support
Others
TPM 1.2 header Form Factor
Mini-ITX

Available Colors
Black

Front Panel
Buttons
Power On/Off button
LEDs
Power LED (Hard drive activity LED) Expansion Slots
Mini-PCI-E
1x Mini-PCIe slot
mSATA (2.0)
1x mSATA slot (SATA 2.0)

Drive Bays
Internal
1x 2.5" HDD tray System Cooling
Fans
1x 4cm cooling fan

Power Supply
60W DC Power Adapter

System BIOS
BIOS Type
64Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features
Plug and Play (PnP)
ACPI 5.0
UEFI 2.3.1
SMBIOS 2.7
DMI 2.3
USB Keyboard support
RTC (Real time Clock) Wakeup
3TB HDD Support Management
Software
SuperDoctor 5
Watch Dog
Power Configurations
ACPI / ACPM Power Management
Main Switch Override Mechanism
Keyboard Wakeup from Soft-Off
Power-on mode for AC power recovery
Fan
Fans with tachometer status monitoring
Status monitor for speed control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors

RoHS
RoHS Compliant Item Dimension (L"xW"xH"):
15 x 10.87 x 5.59

Weight:
5.75 lb

Warranty Information:
1 Year
