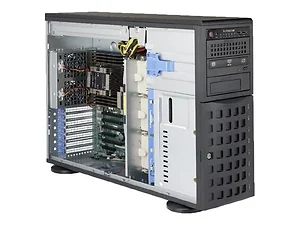

Supermicro SYS-7049P-TRT(3YR) System SYS-7049P-TRT 4U Intel C622 Xeon Scalable LGA3647 PCI Express SATA 8x3.5 inch Hot-S

Motherboard
Super X11DPi-NT Processor/Cache
CPU:Dual Socket P (LGA 3647)
Intel Xeon Scalable Processors,
Dual UPI up to 10.4GT/sSupport CPU TDP 70-205W
Cores:Up to 28 Cores with Intel HT Technology
System Memory
Memory Capacity:16 DIMM slots
Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM, DDR4 up to 2666MHz
Memory Type:2666/2400/2133MHz ECC DDR4 SDRAM
On-Board Devices
Chipset:Intel C622 chipset
SATA:SATA3 (6Gbps) RAID 0, 1, 5, 10
Network Controllers:Intel X722 10GBase-T Ethernet Controller
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
IPMI:Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video:ASPEED AST2500 BMC
Input / Output
SATA:8 SATA3 (6Gbps) ports
LAN:2 RJ45 10GBase-T LAN ports
1 RJ45 Dedicated IPMI LAN port
USB:Rear USB: 2 USB 3.0 + 2 USB 2.0
Front USB: 2 USB 2.0
USB Header: 1 Type A
Video:1 VGA port
Serial Port / Header:2 Fast UART 16550 serial
2 COM Ports (1 rear, 1 header)
DOM:2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type:AMI UEFI
Management
Software:Intel Node Manager
IPMI 2.0
KVM with dedicated LAN
NMI
SSM, SPM, SUM
SuperDoctor 5
Power Configurations:ACPI Power Management
PC Health Monitoring
CPU:Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN:Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature:Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Chassis
Form Factor:4U Rackmountable / Tower
Optional Rackmount Kit
Model:CSE-745BAC-R1K28B2
Dimensions and Weight
Available Colors:Black
Front Panel
Buttons:Power On/Off button
System Reset button
LEDs:Power LED
Hard drive activity LED
Network activity LEDs
System Overheat LED
Power Fail LED
Ports:2 USB Ports
Expansion Slots
PCI-Express:4 PCI-E 3.0 x16 slots
2 PCI-E 3.0 x8 slots
Support total of 6 Full-height AOC
Drive Bays
Hot-swap:8 Hot-swap 3.5" SATA3 drive bays
Peripheral Bays:3 Peripheral 5.25" drive bays
SAS / SATA Backplane
SAS / SATA Hard Drive Backplane w/AMI MG9072
System Cooling
Fans:3x 80mm high-performance fans
2x 80mm PWM Rear Chassis fans
Power Supply
1280W Redundant High-efficiency Digital Power Supplies w/ PMBus 1.2
AC Input:1000W Output at 100-140V, 8-12A, 50-60Hz
1280W Output at 180-240V, 6-8A, 50-60Hz
DC Output1000W: +12V/83A +5Vsb/4A
1280W: +12V/106.7A, +5Vsb/4A
Certification: Platinum Certified
Operating Environment
RoHSRoHS Compliant
Environmental Spec.Operating Temperature: 10^oC - 35^oC (50^oF - 95^oF)
Non-operating Temperature: -40^oC to 60^oC (-40^oF to 140^oF)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Item Dimension (L inchxW inchxH inch)
27 x 14 x 24 Weight
73.50lb Warranty Information
3 Year
