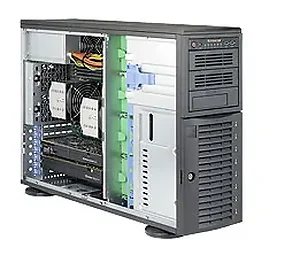

Supermicro SYS-7048R-TR System SYS-7048R-TR 4U Rackmount Tower E5-2600v3 LGA2011 SKT-RL 8x3.5inch Hot-Swap 920W Redundan

Motherboard
Super X10DRi
Processor/Cache
CPU
Intel Xeon processor E5-2600 v4/ v3 family (up to 145W TDP)
Dual Socket R3 (LGA 2011)
Cores / Cache
Up to 22 Cores / Up to 55MB Cache
System Bus
QPI up to 9.6 GT/s
Note
BIOS version 2.0 or above is required
Note
Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity
16x 288-pin DDR4 DIMM slots
Up to 2TB ECC 3DS LRDIMM, 1TB ECC RDIMM
Memory Type
2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
RDIMM: 32GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB
3DS LRDIMM: 128GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
On-Board Devices
Chipset
Intel C612 chipset
SATA
SATA 3.0 (6Gbps) with RAID 0, 1, 5, 10
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers
Intel i350 Dual Port Gigabit Ethernet
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)
Video
ASPEED AST2400 BMC
Input / Output
SATA
8x SATA3 (6Gbps) ports
2x SATA3 powered ports that support SATA DOM
LAN
2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB
Rear USB: 2x USB 3.0 + 2x USB 2.0
Front USB: 2x USB 2.0
USB Header: 2x 3.0, 2x 2.0, 1x Type A
Video
1x VGA port
Serial Port / Header
1x COM/Serial
System BIOS
BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
APM 1.2
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
SMBIOS 2.7.1
UEFI 2.3.1
Management
Software
SuperDoctor 5
Watch Dog
NMI, SPM, SUM
IPMI 2.0
Intel Node Manager
Power Configurations
ACPI / APM Power Management
Power-on mode for AC power recovery
Chassis
Form Factor
4U Rackmountable / Tower
Optional Rackmount Kit
Model
CSE-745TQ-R920B
Available Colors
Black
Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
Power Fail LED
Ports
2x USB Ports
Expansion Slots
PCI-Express
3x PCI-E 3.0 x16 (Full-height, Full-length)
3x PCI-E 3.0 x8 (Full-height, Full-length)
Drive Bays
Hot-swap
8x 3.5" Hot-swap SAS/SATA Drive Trays
Peripheral Bay(s) (90^o Rotatable)
2x 5.25" Peripheral Drive Bays
1x 5.25" Bay that fits 3.5" bay devices
SAS / SATA Backplane
SAS / SATA Hard Drive Backplane w/AMI MG9072
System Cooling
Fans
3x 8cm hot-swap redundant PWM cooling fans
2x 8cm hot-swap exhaust Fans and air shroud
Power Supply with Power Distributor
920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C
AC Input
100-240 V, 50-60 Hz, 11-4.5 Amp
DC Output
4 Amp at +5V standby
75 Amp at +12V
Certification
Platinum Certified
PC Health Monitoring
CPU
Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
6-Phase-switching voltage regulator
FAN
Total of eight fan headers supporting up to 8 fans
8x fans with tachometer status monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Control for 8x fan connectors
Thermal Monitor 2 (TM2) support
PECI
LED
CPU / System Overheat LED
Suspend static indicator LED
UID/Remote LED
Other Features
Chassis intrusion detection
Chassis intrusion header
Operating Environment / Compliance
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10^oC to 35^oC (50^oF to 95^oF)
Non-operating Temperature:
-40^oC to 70^oC (-40^oF to 158^oF)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
Item Dimension (L"xW"xH")
27 x 14 x 24
Weight
73.50 LB
Warranty Information
5 Years
