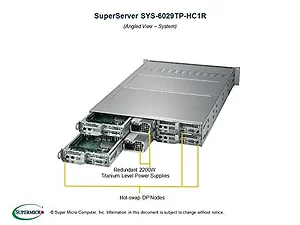

SYS-6029TP-HC1R - Supermicro Super Micro Computer

Motherboard (Four per System)
Super X11DPT-PS Processor/Cache (per Node)
CPU
Dual Socket P (LGA 3647)
2nd Gen. Intel Xeon Scalable Processors (Cascade Lake/Skylake),
Dual UPI up to 10.4GT/s
Support CPU TDP 70-165W
Cores
Up to 28 Cores
Note
Please contact Supermicro Technical Support for supporting conditions of high power (TDP 150W and above) or high base frequency (3.0 GHz and above) processors.
Note
BIOS version 3.0a or above is required to support 2nd Gen. Intel Xeon Scalable processors System Memory (per Node)
Memory Capacity
16 DIMM slots
Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Supports Intel Optane DCPMM
Memory Type
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info. On-Board Devices (per Node)
Chipset
Intel C621 chipset
SAS
Broadcom 3108 SAS3 (12Gbps) controller
RAID 0, 1, 5 support
Network Controllers
Barebones and Complete System must have at least one SIOM or network card installed per node
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
ASPEED AST2500 BMC Input / Output (per Node)
SAS
3 SAS3 (12Gbps) ports
LAN
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 3.0 ports total (rear)
VGA
1 VGA port
Serial Port / Header
1 Fast UART 16550 port / 1 Header (internal)
Others
2 SuperDOM support on the motherboard. SuperDOM is for OS boot. System BIOS
BIOS Type
AMI 32MB SPI Flash ROM Management
Software
Intel Node Manager
IPMI 2.0
KVM with dedicated LAN
NMI
SSM, SPM, SUM
SuperDoctor 5
Watchdog
Power Configurations
ACPI Power Management PC Health Monitoring
CPU
Monitors for CPU Cores, Chipset Voltages, Memory.
5+1 Phase-switching voltage regulator
FAN
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Omni-Path Fabric CPUs
Do not support Chassis
Form Factor
2U Rackmount
Model
CSE-827HQ+-R2K20BP2
Available Colors
Black Front Panel
Buttons
Power On/Off button
UID button
LEDs
Power status LED
HDD activity LED
Network activity LEDs
Universal Information (UID) LED Expansion Slots (per Node)
PCI-Express
2 PCI-E 3.0 x16 Low-profile slots
1 SIOM card support
Note: Barebones and Complete System must bundle with Network Card
Note: With only one CPU installed, SXB2 M.2 and SXB4 riser card slots not function.
This SKU does not support AOC-SMG3-2H8M2 M.2 carrier. Drive Bays (per Node)
Hot-swap
3 Hot-swap 3.5" SAS/SATA HDD trays System Cooling
Fans
4 Heavy duty 8cm PWM fans with optimal fan speed control Power Supply
2200W Redundant Power Supplies with PMBus
Total Output Power and Input
1200W with Input 100-127Vac
1800W with Input 200-220Vac
1980W with Input 220-230Vac
2090W with Input 230-240Vac
2200W with Input 220-240Vac (for UL/cUL use only)
2090W with Input 230-240Vdc (for CCC only)
AC Input Frequency
50-60Hz
Dimension (W x H x L)
76 x 40 x 336 mm
+12V
Max: 100A / Min: 0A (100-127Vac)
Max: 150A / Min: 0A (200-220Vac)
Max: 165A / Min: 0A (220-230Vac)
Max: 174.17A / Min: 0A (230-240Vac)
Max: 183.3A / Min: 0A (220-240Vac)
5VSB
Max: 1A / Min: 0A
Output Type
Backplanes (gold finger)
Certification
Titanium Level96% Titanium Level Operating Environment
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10^oC - 35^oC (50^oF - 95^oF)
Non-operating Temperature:
-40^oC to 60^oC (-40^oF to 140^oF)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing) Item Dimension (L"xW"xH")
NA

Weight
90 lbs

Warranty Information
3 years labor, 1 year parts, limited cross ship
