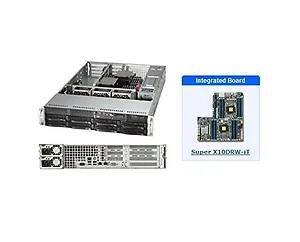

SYS-6028R-WTRT - Supermicro SY SYS-6028R-WTRT(5YR) 2U Xeon E5-2600v4 v3 S2011 Socket R3 X540

Motherboard
Super X10DRW-iT Processor/Cache
CPU
Intel Xeon processor E5-2600 v4/ v3 family (up to 145W TDP)
Dual Socket R3 (LGA 2011)
Cores / Cache
Up to 22 Cores / Up to 55MB Cache
System Bus
QPI up to 9.6 GT/s
Note
BIOS version 2.0 or above is required
Note
Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization. System Memory
Memory Capacity
16x 288-pin DDR4 DIMM slots
Up to 2TB ECC 3DS LRDIMM/RDIMM
Memory Type
2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB
3DS LRDIMM: 128GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors On-Board Devices
Chipset
Intel C612 chipset
SATA
SATA3 (6Gbps) RAID 0, 1, 5, 10
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers
Intel X540 Dual Port 10GBase-T
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8211E PHY (dedicated IPMI)
Video
ASPEED AST2400 BMCOn-Board Devices
Chipset
Intel C612 chipset
SATA
SATA3 (6Gbps) RAID 0, 1, 5, 10
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers
Intel X540 Dual Port 10GBase-T
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8211E PHY (dedicated IPMI)
Video
ASPEED AST2400 BMC Input / Output
SAS/SATA
Customizable storage
LAN
2x RJ45 10GBase-T ports
1x RJ45 Dedicated IPMI LAN port
USB
6x USB 3.0 ports (4 rear + 2 via header)
Video
1x VGA port
Serial Port / Header
1x Fast UART 16550 port / 1 Header
DOM
2x SuperDOM (Disk on Module) ports Chassis
Form Factor
2U Rackmount
Model
CSE-825TQ-R740WB
Available Colors
Black Front Panel
Buttons
Power On/Off button
System Reset button
UID button
LEDs
Power status LED
HDD activity LED
2x Network activity LEDs
Universal Information (UID) LED Expansion Slots
PCI-Express
4x PCI-E 3.0 x8 slots (2x Full-height Full-length, 2x Full-height Half-length)
2x PCI-E 3.0 slots (Low-profile)
UIO AOC Compatibility Matrix
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.) Drive Bays
Hot-swap
8x 3.5" Hot-swap SAS / SATA HDD trays (ready for PCI-E storage controller card) Backplane
1x 2U SAS backplane w/ Enclosure Management
(SAS support requires optional SAS controller) Peripheral Drives
DVD-ROM
Slim DVD-ROM drive (optional) System Cooling
Fans 3x 80mm 7,000 RPM 4-pin PWM fans Power Supply with Power Distributor
740W (1+1) Redundant high-efficiency power supply with PMBus
AC Input
100-240 V, 50-60 Hz, 9-3.5 Amp
DC Output
4 Amp at +5V standby
61.7 Amp at +12V
Certification
Platinum Level Certified System BIOS
BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
APM 1.2
PCI 2.2
ACPI 1.0 / 2.0 / 3.0 / 4.0
BIOS resuce hot keys
USB Keyboard support
SMBIOS 2.3
UEFI Operating Environment / Compliance
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10^oC to 35^oC (50^oF to 95^oF)
Non-operating Temperature:
-40^oC to 70^oC (-40^oF to 158^oF)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing) Item Dimension (L"xW"xH")
NA

Weight
62 lbs

Warranty Information
5 Years
