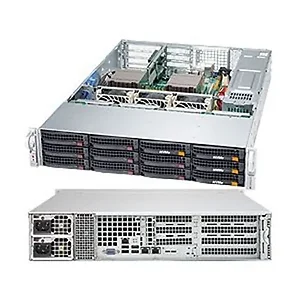

Supermicro SYS-6028R-WTR (3YR) 2U E5-2600v3 S2011 SKT-R3 8x3.5HS SAS SATA 740W

Processor/Cache
CPU:
- Intel Xeon processor E5-2600 v4/ v3 family (up to 145W TDP)
- Dual Socket R3 (LGA 2011)
Cores / Cache: Up to 22 Cores / Up to 55MB Cache
System Bus: QPI up to 9.6 GT/s System Memory
Memory Capacity:
- 16x 288-pin DDR4 DIMM slots
- Up to 2TB ECC 3DS LRDIMM, 512GB ECC RDIMM
Memory Type: 2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes:
- RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
- LRDIMM: 64GB, 32GB
- 3DS LRDIMM: 128GB
Memory Voltage: 1.2 V
Error Detection: Corrects single-bit errors On-Board Devices
Chipset: Intel C612 chipset
SATA: SATA3 (6Gbps) RAID 0, 1, 5, 10
IPMI:
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2400 BMC
Network Controllers:
- Intel i350 Dual Port Gigabit Ethernet Controller
- Virtual Machine Device Queues reduce I/O overhead
- Supports 1GBASE-T, RJ45 output
- 1x Realtek RTL8211E PHY (dedicated IPMI)
Video: ASPEED AST2400 BMC Input / Output
SAS/SATA: Customizable storage
LAN:
- 2x RJ45 Gigabit Ethernet LAN ports
- 1x RJ45 Dedicated IPMI LAN port
USB: 6x USB 3.0 ports (4 rear + 2 via header)
Video: 1x VGA port
Serial Port / Header: 1x Fast UART 16550 port / 1 Header
DOM: 2x SuperDOM (Disk on Module) ports Chassis
Form Factor: 2U Rackmount
Model: CSE-825TQ-R740WB Available Colors
Black Front Panel
Buttons:
- Power On/Off button
- System Reset button
- UID button
LEDs:
- Power status LED
- HDD activity LED
- 2x Network activity LEDs
- Universal Information (UID) LED Expansion Slots
4x PCI-E 3.0 x8 slots (2x Full-height Full-length, 2x Full-height Half-length)
2x PCI-E 3.0 slots (Low-profile)
UIO AOC Compatibility Matrix Drive Bays
Hot-swap: 8x 3.5inch Hot-swap SAS / SATA HDD trays (ready for PCI-E storage controller card) Backplane
1x 2U SAS backplane w/ Enclosure Management
(SAS support requires optional SAS controller) Peripheral Drives
DVD-ROM: Slim DVD-ROM drive (optional) System Cooling
Fans: 3x 80mm 7,000 RPM 4-pin PWM fans Power Supply with Power Distributor
740W (1+1) Redundant high-efficiency power supply with PMBus
AC Input: 100-240 V, 50-60 Hz, 9-3.5 Amp
DC Output:
- 4 Amp at +5V standby
- 61.7 Amp at +12V
Certification: Platinum Certified System BIOS
BIOS Type: 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features:
- Plug and Play (PnP)
- APM 1.2
- PCI 2.2
- ACPI 1.0 / 2.0 / 3.0 / 4.0
- BIOS resuce hot keys
- USB Keyboard support
- SMBIOS 2.3
- UEFI Operating Environment / Compliance
RoHS: RoHS Compliant
Environmental Spec. :
- Operating Temperature: 10^oC to 35^oC (50^oF to 95^oF)
- Non-operating Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5% to 95% (non-condensing) Item Dimension (L inchxW inchxH inch)
26 x 18 x 4

Weight
62.00 lb

Warranty Information
3 Year
