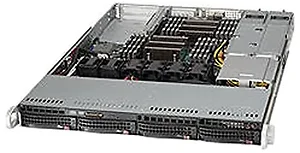

SYS-6018R-WTRT - Supermicro SuperServer 6018R-WTRT

Motherboard
Super X10DRW-iT

Processor/Cache
CPU
Intel Xeon processor E5-2600 v3 family (up to 145W TDP )
Dual Socket R3 (LGA 2011)
Cores / Cache
Up to 18 Cores / Up to 45MB Cache
System Bus
QPI up to 9.6 GT/s System Memory
Memory Capacity
16x 288-pin DDR4 DIMM slots
Up to 1TB ECC LRDIMM, 512GB ECC RDIMM
Memory Type
2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
RDIMM: 32GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors On-Board Devices
Chipset
Intel C612 Express chipset
SATA
SATA3 via Intel C612 RAID 0, 1, 5, 10
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers
Intel X540 Dual Port 10GBase-T
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8211E PHY (dedicated IPMI)
Graphics
ASPEED AST2400 BMC Input / Output
SATA/SAS
10x SATA3 (6Gbps) ports
LAN
2x RJ45 10GBase-T ports
1x RJ45 Dedicated IPMI LAN port
USB
6x USB 3.0 ports (4 rear + 2 via header)
Video
1x VGA port
Serial Port / Header
1x Header
DOM
2x SuperDOM (Disk on Module) ports Management
Software
SuperDoctor 5
Watch Dog
NMI
IPMI 2.0
Intel Node Manager
Power Configurations
ACPI / APM Power Management
Power-on mode for AC power recovery Form Factor
1U Rackmount

Available Colors
Black

Front Panel
Buttons
Power On/Off button
System Reset button
UID button
LEDs
Power status LED
HDD activity LED
2x Network activity LEDs
Universal Information (UID) LED Expansion Slots
PCI-Express
2x PCI-E 3.0 x16 (Full-height, Full-length)
1x PCI-E 3.0 x8 Mezzanine for HBA cards
UIO AOC Compatibility Matrix
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.) Drive Bays
Hot-swap
4x 3.5" Hot-swap SAS / SATA HDD trays (ready for PCI-E storage controller card)

Peripheral Drives
DVD-ROM
Slim DVD-ROM drive (optional) Backplane
SAS/SATA HDD Backplane
(SAS support requires optional SAS controller)

System Cooling
Fans
5x 4cm Counter-rotating PWM fans Power Supply
700W/750W Redundant AC-DC high-efficiency power supply with PMBus and I2C
AC Voltage
700W: 100 - 140 V, 50-60 Hz
750W: 200 - 240V, 50-60 Hz
DC Output +5V standby
3 Amp
DC Output +12V
700W: 58 Amp at 100-140V
750W: 62 Amp at 200-240V
Certification
Platinum Level Certified Platinum Certified System BIOS
BIOS Type
128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
Plug and Play (PnP)
APM 1.2
PCI 2.2
ACPI 1.0 / 2.0 / 3.0 / 4.0
BIOS resuce hot keys
USB Keyboard support
SMBIOS 2.3
UEFI

RoHS
RoHS Compliant Weight:
36 lb

Warranty Information:
1 Year
