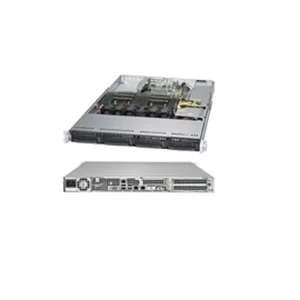

SYS-6018R-TDW - Supermicro System SYS-6018R-TDW(REFURB) 1U E5-2600v3 LGA 2011 C612 DDR4 PCI Express 600W Retail

Key Features

Data Center Optimized

3 AOCs and 1 AOM SAS3

Mezzanine Card

1. Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v4/ v3 family; QPI up to 9.6GT/s

2. Up to 2TB ECC 3DS LRDIMM , up to DDR4- 2400MHz ; 16x DIMM slots

3. 2x PCI-E 3.0 x16 (FHHL) slots

1x PCI-E 3.0 x8 (LP) slot

4. 4x 3.5" Hot-swap SATA3 Drive Bays

5. Intel i350 Dual-Port 1GbE LAN

6. I/O ports: 1x VGA, 2x USB 3.0, 2x USB 2.0

7. 600W High-Efficiency Power Supply Platinum Level Certified

8. 2x SuperDOM (Disk on Module) ports

9. IPMI 2.0 + KVM with Dedicated LAN

Motherboard
Super X10DDW-i
Processor/Cache
CPU
Intel Xeon processor E5-2600 v4/ v3 family (up to 145W TDP)
Dual Socket R3 (LGA 2011)
Cores / Cache
Up to 22 Cores / Up to 55MB Cache
System Bus
QPI up to 9.6 GT/s
Note
BIOS version 2.0 or above is required
Note
Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity
16x 288-pin DDR4 DIMM slots
Up to 2TB ECC 3DS LRDIMM, 1TB ECC RDIMM
Memory Type
2400/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
LRDIMM: 64GB, 32GB
3DS LRDIMM: 128GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
On-Board Devices
Chipset
Intel C612 chipset
SATA
SATA3 (6Gbps), RAID 0, 1, 5, 10
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers
Intel i350 Dual Port Gigabit Ethernet
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8211E PHY (dedicated IPMI)
Video
ASPEED AST2400 BMC
Input / Output
SATA
4x SATA3 (6Gbps) ports
I-SATA 4 I-SATA 5 support SATA DOM
LAN
2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB
3x USB 3.0 ports (2 rear, 1 Type A)
4x USB 2.0 ports (2 rear, 2 headers)
Video
1x VGA port
Serial Port / Header
1x COM port (header)
DOM
2x SuperDOM (Disk on Module) ports
Management
Software
IPMI 2.0
Intel Node Manager
SuperDoctor 5
SSM
SPM
SUM
Watch Dog
Power Configurations
ACPI / APM Power Management
Power-on mode for AC power recovery
Chassis
Form Factor
1U Rackmount
Model
CSE-815TQ-600WB
Available Colors
Black
Front Panel
Buttons
Power On/Off button
System Reset button
UID button
LEDs
Power status LED
HDD activity LED
2x Network activity LEDs
Universal Information (UID) LED
Expansion Slots
PCI-Express
2x PCI-E 3.0 x16 (FHHL) slots
1x PCI-E 3.0 x8 (LP) slot
Drive Bays
Hot-swap
4x 3.5" Hot-swap SATA3 Drive Bays
