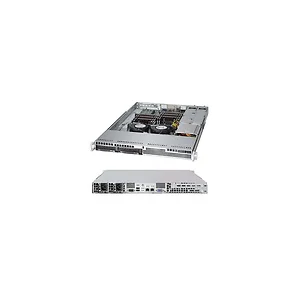

Supermicro SYS-6017R-TDLRF 1U Rackmount Server SYS-6017R-TDLRF

Specifications

• Motherboard: Super X9DRD-LF
• Processor: Dual LGA2011

  • Supports up to Two Intel 64-bit Xeon E5-2600 Processors
  • Cache up to 20 MB
  • QPI up to 8 GT/s
  • Supports 60W - 130W TDP
• Chipset: Intel C602
• Memory: 8x 240pin DDR3-1600/1333/1066/800 DIMM Slots, Supports up to 256GB ECC/REG Memory or up to 64GB ECC/Unbuffered Memory
• Slots: 1x PCI-Express 3.0 x16 Slot (Full-height, Half-length)
• SATA: 2x SATA3 Ports, Support RAID 0, 1
• Video: Matrox G200eW Graphics
• LAN: Intel i350 Dual Port Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
• Drive Bays: 2x 3.5" Hot-swap SATA HDD Trays
• Backplane: 1x 1U SATA Backplane
• Ports: 4x USB 2.0 Ports (2 rear, 2 via header), 1x VGA Port, 1x Serial Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 1U Rackmount
• Power Supply: 500W 80 PLUS Platinum Certified High-efficiency (94%+) Redundant Power Supplies with PMBus
• System Cooling: 2x 10cm PWM Blower Fans
• Front Panel:

  • Buttons: Power On/Off, System Reset
  • LEDs: Power Status, HDD Activity, 2x Network Activity, Universal Information (UID)
• Color: Black
• Dimensions (WxDxH): 17.2 x 25.6 x 1.7 inch / 437.0 x 650.0 x 43.0 mm
• Gross Weight: 40.0 lbs / 18.14 kg
• RoHS Compliant
