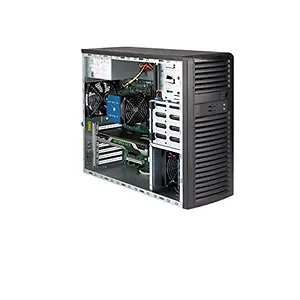

SYS-5039C-T - Supermicro SY SYS-5039C-T(5YR) Socket H4 S1151 C246 64GB PCIE Mid Tower 500W

Motherboard
Super X11SCA

Processor
CPU
Single Socket H4 (LGA 1151),CPU TDP support up to 95W
Support Intel Xeon processor E-2100 / E-2200 series, 8th/9th Gen. Intel Core^TM i9/i7/i5/i3 Processors, Intel Celeron, Intel Pentium
Core/Cache
Up to 8-Cores

System Memory
Memory Capacity
4 DIMM slots
Up to 128GB ECC/non-ECC UDIMM
Up to DDR4-2666MHz
Memory Type
2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes
64GB, 32GB, 16GB, 8GB
Note
BIOS must be 1.0c or newer

On-Board Devices
Chipset
Intel C246 chipset
SATA
SATA3 (6Gbps) via Intel C246 controller
RAID 0, 1, 5, 10 support
Network Controllers
Single LAN with Intel I210-AT
Single LAN with Intel PHY I219LM

Input / Output
SATA
8 SATA3 (6Gbps) ports from Intel C246
LAN
2 RJ45 Ethernet LAN ports
USB
2 USB 3.1 Gen 2 Type A and Type C (rear)
4 USB 3.1 Gen 1 (2 rear + 2 front)
2 USB 2.0 (front)
Video
1 HDMI (2.0a) port
1 DVI-D port, 1 DisplayPort 1.2 port
Audio
7.1 HD Jacks
Serial Port / Header
1 COM port (header)
TPM
1 TPM 2.0 Header

Expansion Slots
PCI-Express
2 PCI-E 3.0 x16 running at NA/16 or 8/8
1 PCI-E 3.0 x4 slot
1 PCI-E 3.0 x1 slot
1 PCI 32bit 5V slot
M.2
M.2 Interface: 2 PCI-E 3.0 x4
M.2 Form Factor: 2260/ 2280/ 22110
M.2 Key: M-Key
U.2 Interface: 1 PCI-E 3.0 x4 (Shared with M.2 number2)

System BIOS
BIOS Type
UEFI 256Mb
BIOS Features
ACPI 3.0 or later
SMBIOS 2.7 or later
SPI dual/quad speed support
RTC wakeup

Chassis
Form Factor
Mid-Tower
Model
CSE-732D4-500B

Available Colors
Black

Front Panel
Buttons
Power On/Off button
LEDs
Power LED
Hard drive activity LED
Network activity LED
System Information LED
Ports
2 USB 2.0 ports, 2 USB 3.1 Gen 1 ports
1 Line-out, 1 Mic-in

Drive Bays
Internal
4 Fixed 3.5" drive bays
Optional 4 internal 2.5" drive bays
Enterprise SATA HDD only recommended
Peripheral
2 Standard 5.25" Peripheral drive bays
1 Internal 3.5" Fixed device bay

System Cooling
Fans
1x 12cm rear exhaust fan
Optional 1x 12cm front cooling fan

Power Supply
500W AC power supply w/ PFC
AC Voltage
100 - 240V, 50-60Hz, 7-3.5 Amp
+5V
20 Amp
+5V standby
3 Amp
+12V1
17 Amp
+12V2
17 Amp
+12V3
17 Amp
+12V4
18 Amp
-12V
0.5 Amp
+3.3V
15 Amp
Certification
Bronze Certified

PC Health Monitoring
CPU
Monitors for CPU Cores, +1.8V, +3.3V, +5V, +-12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
4+2-Phase-switching voltage regulator
FAN
Low noise fan speed control
Temperature
Monitoring for CPU and chassis environment
Thermal Control for 5x 4-pin fan connectors
PECI

Operating Environment / Compliance
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10^oC to 35^oC (50^oF to 95^oF)
Non-operating Temperature:
-40^oC to 70^oC (-40^oF to 158^oF)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)

Weight
35.50lb

Warranty Information
5 Years
