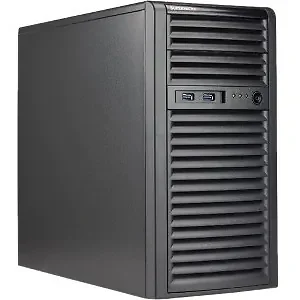

SYS-5039C-I - Supermicro System SYS-5039C-I H4 LGA1151 C242 128GB DDR4 PCIE/USB Black Brown Box

Motherboard
Super X11SCL-F Processor
CPU
Single Socket LGA-1151 (Socket H4) supported, CPU TDP support Up to 95W TDP
8th/9th Generation Intel Core^TMi3/Pentium/Celeron Processor, Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor.
Cores/Cache
6 cores, 12 threads
Note
BIOS version 1.0b or above is required to support Intel Xeon E-2200 and 9th Generation Intel Core^TMi3/Pentium/Celeron Processors System Memory
Memory Capacity
4 DIMM slots
Up to 128GB ECC UDIMM
Up to DDR4-2666MHz
Memory Type
2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes
32GB, 16GB, 8GB On-Board Devices
Chipset
Intel C242 chipset
SATA
SATA3 (6Gbps) via Intel C242 controller
RAID 0, 1, 5, 10 support
Network Controllers
Dual GbE LAN with Intel I210-AT
IPMI
ASPEED AST2500 Input / Output
SATA
6 SATA3 (6Gbps) ports
LAN
2 RJ45 Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 3.2 Gen1 (front)
2 USB 3.2 Gen1 (rear)
2 USB 2.0 (rear)
Video
1 VGA port
Serial Port / Header
1 COM port
TPM
1 TPM 2.0 Header Expansion Slots
PCI-Express
1 PCI-E 3.0 x8 (in x16) slot
2 PCI-E 3.0 x4 (in x8) slots
M.2
M.2 Interface: 1 PCI-E 3.0 x4
M.2 Form Factor: 22110/2280
M.2 Key: M-Key System BIOS
BIOS Type
UEFI 256Mb
BIOS Features
ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
PCI F/W 3.0 Management
Software
SuperDoctor 5
Watch Dog
Non-maskable Interrupt (NMI) Chassis
Form Factor
Mid-Tower
Model
CSE-731i-403B Available Colors
Black Front Panel
Buttons
Power On/Off button
LEDs
Power LED
Hard drive activity LED
Network activity LED
System Information LED
Ports
2 USB 3.1 Gen 1 ports Drive Bays
Internal
4 Fixed 3.5" drive bays
Peripheral
2 External 5.25" Peripheral bays System Cooling
Fans
1x 9cm (rear) PWM fan w/ tool-less design
Optional 1x 8cm (front) cooling fan Power Supply
Super quiet operation with 12cm cooling fan and 80plus gold certification
Total Output Power and Input
400W with Input 100 - 240Vac
AC Input Frequency
50-60Hz
-12V
Max: 0.3A
+12V
18A
+5V
Max: 22A
+3.3V
Max: 24A
+5V standby
Max: 3A
Certification
80 PLUS Gold Certified PC Health Monitoring
CPU
Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
4 CPU switch phase voltage regulator
FAN
Low noise fan speed control
Temperature
Monitoring for CPU and chassis environment
Thermal Control for five 4-pin fan connectors
Platform Environmental Control Interface (PECI) Operating Environment / Compliance
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10^oC to 35^oC (50^oF to 95^oF)
Non-operating Temperature:
-40^oC to 60^oC (-40^oF to 140^oF)
Operating Relative Humidity:
20% to 95% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing) Weight
35.50LB

Warranty Information
3 Years
