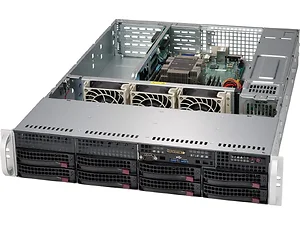

SYS-5029P-WTR(5YR) - Supermicro SuperServer 5029P-WTR Server Barebone System - 2U Rack-mountable - Socket P LGA-3647 - 1

Motherboard
Super X11SPW-TF Processor/Cache
CPU
Single Socket P (LGA 3647)
2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
Support CPU TDP 70-205W
Cores
Up to 28 Cores
Note
BIOS version 3.2 or above is required to support 2nd Gen Intel Xeon Scalable processors (codenamed Cascade Lake-R) System Memory
Memory Capacity
6 DIMM slots
Up to 1.5TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Memory Type
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note
2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
Cascade Lake only. Contact your Supermicro sales rep for more info. On-Board Devices
Chipset
Intel C622 chipset
SATA
SATA3 (6Gbps) RAID 0, 1, 5, 10
Network Controllers
Dual 10GBase-T LAN with Intel X722 + X557
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
ASPEED AST2500 BMC Input / Output
SATA
10 SATA3 (6Gbps) ports
LAN
2 RJ45 10GBase-T LAN ports
1 RJ45 dedicated IPMI LAN port
USB
5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
7 USB 2.0 ports (2 rear + 5 headers)
Video
1 VGA port
Serial Port / Header
2 COM ports (1 rear, 1 front)
SuperDOM
2 SuperDOM (Disk on Module) ports with built-in power System BIOS
BIOS Type
AMI 32Mb SPI Flash ROM Management
Software
Intel Node Manager
IPMI 2.0
KVM with dedicated LAN
NMI
SPM, SUM
SuperDoctor 5
Watch Dog
Power Configurations
ACPI / APM Power Management PC Health Monitoring
CPU
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors Chassis
Form Factor
2U Rackmount
Model
CSE-825TQC-R500WB
Available Colors
Black Front Panel
Buttons b>
Power On/Off button
System Reset button
LEDs b>
Power LED
Hard drive activity LED
Network activity LEDs
System Information LED
Information LED (temp., status) Expansion Slots b>
PCI-Express b>
4 PCI-E 3.0 x8 (FHFL) slots
1 PCI-E 3.0 x8 (LP) slot
M.2 b>
1x M.2 Interface: PCI-E 3.0 x4 and SATA
Form Factor: 2280, 22110
Key: M-Key
Double Height Connector Drive Bays
Hot-swap
8 Hot-swap 3.5" SATA3 drive bays Peripheral Drives
DVD-ROM
1 Slim DVD-ROM drive bay System Cooling
Fans
3 Hot-swap 8cm PWM cooling fans Power Supply with Power Distributor
500W high-efficiency redundant power supplies with PMBus
AC Input
100-240 V, 50-60 Hz, 6.1-2.6 Amp
DC Output
4 Amp at +5V standby
41.7 Amp at +12V
With Power Distributor
+5V: 30 Amp
+3.3V: 24 Amp
-12V: 0.6 Amp
Certification
94 %+ Platinum Certified Operating Environment
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10^oC - 35^oC (50F - 95^oF)
Non-operating Temperature:
-40^oC to 70^oC (-40^oF to 158^oF)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing) Item Dimension (L"xW"xH")
34 x 11 x 27

Weight
73 lbs

Warranty Information
5 Years
