SYS-5029C-T(5YR) - Supermicro SUPER SERVER-INTEL, MICRO TOWER SERVER (X11SCL-IF, CSE-721TQ-350B2), BLACK

Motherboard
Super X11SCL-iF

Processor
CPU
Single Socket H4 (LGA 1151), CPU TDP support up to 80W
Support Intel Xeon Processor E-2100 / E-2200 series, 8th Gen. Intel Core^TM i3 / Pentium / Celeron Processors
Cores
6 cores, 12 threads
Note
BIOS 1.0b or above is required to support Intel Xeon processor E-2200 series

System Memory
Memory Capacity
2 DIMM slots
Up to 64GB ECC UDIMM
Up to DDR4-2666MHz
Memory Type
2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes
32GB, 16GB, 8GB, 4GB
Note
Future support for 64GB via BIOS update expected in early 2019

On-Board Devices
Chipset
Intel C242 chipset
SATA
SATA3 (6Gbps) via Intel C242 controller
RAID 0, 1, 5, 10 support
IPMI
ASPEED AST2500
Network Controllers
Dual LAN with Intel I210-AT
Video
ASPEED AST2500 BMC

Input / Output
SATA
4 SATA3 (6Gbps) ports
LAN
2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 3.1 Gen1 (front)
2 USB 3.1 Gen1 (rear)
2 USB 2.0 (rear)
Video
1 VGA port
Serial Port / Header
1 COM port
DOM
SATA DOM (Disk on Module) power connector support
TPM
1 TPM 2.0 Header

Management
Software
SuperDoctor 5
Watch Dog
Non-maskable Interrupt (NMI)
Chassis intrusion detection

Chassis
Form Factor
Mini Tower
Model
CSE-721TQ-250B2

Available Colors
Black

Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power LED
Hard drive activity LED
Network activity LEDs
System Information LED
Ports
2 USB 3.1 Gen1 ports

Expansion Slots
PCI-E
1 PCI-E 3.0 x16 slot, for low-profile AOC

Drive Bays
HDD

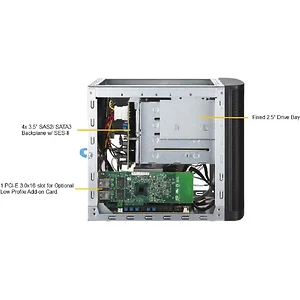

4 Hot-swap 3.5" drive bays with BPN
2 internal 2.5" drive bays
Peripheral
1 optional slim DVD-ROM bay

Power Supply
250W Flex ATX Multi-output Bronze Power Supply
AC Voltage
100 - 240V, 50 - 60Hz
+5V
Max:14 Amp, Min:0.5 Amp
+12V
Max:18 Amp, Min:1 Amp at 100V-240V
-12V
Max: 0.3 Amp
+3.3V
Max: 12 Amp Min: 0.3Amp
5VSB
Max: 2.5 Amp
Certification
Bronze Certified

PC Health Monitoring
CPU
Monitors for CPU Cores, +1.8V, +3.3V, +5V, +-12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
3+0 CPU switch phase voltage regulator
CPU thermal trip support
FAN
Low noise fan speedcontrol
Temperature
Monitoring for CPU and chassis environment
Thermal Control for 4x 4-pin fan connectors
Platform Environmental Control Interface (PECI)

System BIOS
BIOS Type
UEFI 256Mb
BIOS Features
ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
PCI F/W 3.0

Operating Environment / Compliance
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10^oC to 35^oC (50^oF to 95^oF)
Non-operating Temperature:
-40^oC to 60^oC (-40^oF to 140^oF)
Operating Relative Humidity:
20% to 95% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)

Weight
15.00 lb

Warranty Information
5 Years
