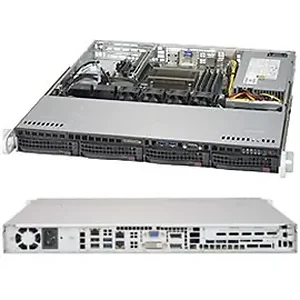

SYS-5019S-M2 - Supermicro System SYS-5019S-M2 1U RM S1151 Socket-H4 Q170 4x3.5inch Hot Swap SATA 350W Brown Box

Form Factor
1U Rackmount
CPU
Single Socket H4 (LGA 1151) supports:
Intel Xeon processor E3-1200 v5, Intel 6th Gen Core i7/i5/i3, Intel Pentium, Intel Celeron processors, K-Type Core i7, i5 not supported
CPU TDP up to 95W
Memory Capacity
4x 288-pin DDR4 DIMM slots
Up to 64GB DDR4 Non-ECC UDIMM
Memory Type
2133/1866/1600MHz Non-ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes
16GB, 8GB, 4GB
Memory Voltage
1.2 V
Chipset
Intel C236 chipset
SATA
SATA3 (6Gbps) via Intel Q170 Express controller
RAID 0, 1, 5, 10 support
4x SATA3 (6Gbps) ports
Audio
RealTek ALC 888S High Definition Audio
Front panel header
Video
ASPEED AST2400 BMC
LAN
2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB
2x USB 3.0 ports (2 rear)
3x USB 2.0 ports (2 rear + 1 Type A)
Video/Display
2x DP (Display Port), 1x DVI-I from Intel HD Graphics, 1x VGA from AST2400
3x Independent Displays from Processor Graphics, VGA is from AST2400 for BMC KVM
Serial Port / Header
2x serial headers
PCI-Express
1x PCI-E 3.0 x16 FH, FL slot
Hot-swap
4x 3.5" Hot-swap SATA3 drive bays
Fans
3x 4cm internal fans
Power Supply
350W AC power supply w/ PFC
Item Dimension (L"xW"xH")
9 x 24 x 30
Weight
31 lb
