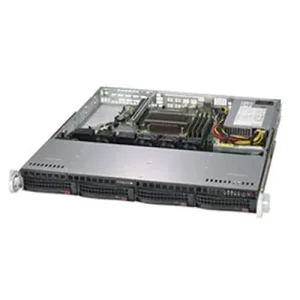

SYS-5019C-M - Supermicro SY SYS-5019C-M(3YR) 1U S1151 C246 128GB DDR4 PCIE USB SATA Black

Motherboard
Super X11SCM-F Processor
CPU
Single Socket H4 (LGA 1151), CPU TDP support up to 95W
Support Intel Xeon processor E-2100 / E-2200 series, 8th/9th Gen. Intel Core^TM i3 / Pentium / Celeron Processors Cores / Cache
8 cores, 16 threads System Memory
Memory Capacity
4 DIMM slots
Up to 128GB Unbuffered ECC UDIMM
Up to DDR4-2666MHz Memory Type
2666/2400/2133MHz ECC DDR4 SDRAM DIMM Sizes
32GB, 16GB, 8GB, 4GB On-Board Devices
Chipset
Intel C246 chipset SATA
SATA3 (6Gbps) via Intel C246 controller
RAID 0, 1, 5, 10 support IPMI
ASPEED AST2500 Network Controllers
Dual LAN with Intel I210-AT Video
ASPEED AST2500 BMC Input / Output
SATA
6 SATA3 (6Gbps) ports, RAID 0, 1, 5, 10 LAN
2 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port USB
2 USB 3.1 ports (rear)
2 USB 2.0 ports (rear) Video
1 VGA port Serial Port / Header
1 COM port (header) TPM
1 TPM 2.0 Header System BIOS
BIOS Type
UEFI 256Mb BIOS Features
ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0 Management
Software
Intel Node Manager
IPMI 2.0
NMI
SSM, SPM, SUM
Watch Dog
SuperDoctor 5
