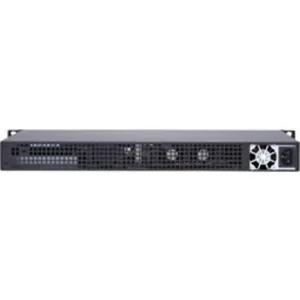

SYS-5019A-FTN4 - Supermicro System SYS-5019A-FTN4 Atom C3758 1U RM FCBGA 1310 128GB DDR4 PCIE SATA Brown Box

Motherboard
Super A2SDi-8C-HLN4F
Processor/Cache
CPU
Intel Atom processor C3758
FCBGA 1310 supported
CPU TDP support 25W
System Memory
Memory Capacity
4x DDR4 DIMM sockets
Supports up to 256GB DDR4 ECC RDIMM
Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type
2400/2133/1866/1600MHz ECC DDR4 SDRAM
DIMM Sizes
64GB, 32GB, 16GB, 8GB, 4GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
Detects double-bit errors
(using ECC memory)
On-Board Devices
SATA
SoC controller for 4 SATA3 (6Gbps) ports
Network Controllers
Quad Gigabit Ethernet LAN via Intel C3000 SoC
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1 Realtek RTL8201N PHY (dedicated IPMI)
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
BMC integrated ASPEED AST2400
Input / Output
SATA
4 SATA3 (6Gbps) ports
LAN
4 RJ45 Gigabit Ethernet LAN ports
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 2.0 ports (rear)
Serial Port
1 COM port (header)
DOM
1 SATA DOM (Disk on Module) power connector
VGA
1 VGA Port
Others
TPM header
Chassis
Form Factor
1U Rackmount
Model
CSE-505-203B
Available Colors
Black
Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power LED
Hard drive activity LED
Network activity LEDs
System Information LED
Information LED (temp., status)
Expansion Slots
PCI-E
1 PCI-E 3.0 x4 slot
1 M.2 PCI-E 3.0 x2, M Key 2242/2280
Drive Bays
HDD
1x 3.5" or 4x 2.5" internal hard drive bays (optional)
System Cooling
Fans
2x 40x28mm 4-PIN PWM Fan, Optional 1x 40x28mm 4-PIN PWM Fan
Power Supply
200W Low Noise AC-DC power supply with PFC
AC Voltage
100 - 240V, 50-60Hz, 2.6 Amp Max
+5V
8.0 Amp (max.)
+5V standby
2.0 Amp (max.)
+12V
16 Amp (max.)
-12V
0.5 Amp (max.)
+3.3V
8.0 Amp (max.)
Certification
Gold Certified
System BIOS
BIOS Type
AMI UEFI BIOS
BIOS Features
Plug and Play (PnP)
DMI 2.3
ACPI 5.0
USB Keyboard support
SMBIOS 2.7.1
UEFI
Operating Environment / Compliance
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature: 0^oC to 40^oC (32^oF to 104^oF)
Non-operating Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Item Dimension (L"xW"xH")
10 x 18 x 10
Weight
13.00 LB
Warranty Information
3 Year
