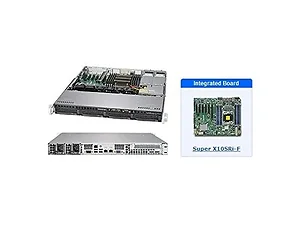

SYS-5018R-MR - Supermicro SuperServer 5018R-MR

Motherboard
Super X10SRi-F

Processor
CPU
Intel Xeon processor E5-2600/1600 v3 family (up to 145W TDP )
Single Socket R3 (LGA 2011)
Core / Cache
Up to 18 Cores / Up to 45MB Cache System Memory
Memory Capacity
8x 288-pin DDR4 DIMM sockets
Up to 512GB DDR4 ECC LRDIMM
Up to 256GB DDR4 ECC RDIMM
Memory Type
2133/1866/1600/1333MHz ECC DDR4 SDRAM 72-bit, 284-pin gold-plated DIMMs
DIMM Sizes
RDIMM: 32GB, 16GB, 8GB, 4GB
Memory Voltage
1.2 V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory) On-Board Devices
Chipset
Intel C612 Express chipset
SATA
SATA3 (6Gbps) via C612 controller
RAID 0, 1, 10 support 5 supported under Windows
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
ASPEED AST2400 BMC
Network Controllers
Intel i350-AM2 Dual Port Gigabit Ethernet
Virtual Machine Device Queues reduce I/O overhead
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)
Video
ASPEED AST2400 BMC Input / Output
SATA
10x SATA3 (6Gbps) ports
LAN
2x RJ45 Gigabit Ethernet LAN ports
1x RJ45 Dedicated IPMI LAN port
USB
2x USB 3.0 ports (2 rear)
4x USB 2.0 ports (2 rear + 2 front)
Video
1x VGA port
Serial Port / Header
1x Fast UART 16550 serial port
1x internal header
DOM
2x SuperDOM (Disk on Module) ports PC Health Monitoring
Voltage
Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN
Total of 6 fan headers supporting up to 6 fans
6 fans with tachometer status monitoring
Status monitor for speed control
Status monitor for on/off control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors Temperature
Monitoring for CPU and chassis environment
CPU thermal trip support
I2C temperature sensing logic
Thermal Monitor 2 (TM2) support
PECI
LED
CPU / System Overheat LED
Suspend static indicator LED
UID/Remote UID
Other Features
Chassis intrusion detection
Chassis intrusion header
Chipkill support
RoHS, Halogen Free Form Factor
1U Rackmount

Available Colors
Black

Front Panel
Buttons
Power On/Off button
System Reset button
LEDs
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED Expansion Slots
PCI-Express
1x PCI-E 3.0 x16 slot

Drive Bays
Hot-swap
4x 3.5" Hot-swap drive bays Peripheral Drives
Optional
Optional slim optical device bay,
optional FDD/USB bay
2x 2.5" Fixed drives internal Power Supply
400W (1+1) Redundant SuperCompact Short-depth AC-DC Gold-level power supply with PMBus and I2C
AC Input
400W: 100-240 V, 50-60 Hz, 6-3 Amp
DC Output +5V standby
3 Amp
DC Output +12V
33 Amp
With Power Distributor
+5V: 25 Amp
+3.3V: 25 Amp
-12V: 0.6 Amp System BIOS
BIOS Type
8MB SPI Flash EEPROM with AMI BIOS
BIOS Features
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0
USB Keyboard support
SMBIOS 2.3

RoHS
RoHS Compliant Item Dimension (L"xW"xH"):
19.85 x 17.2 x 1.7

Weight:
31.4 lb

Warranty Information:
1 Year
