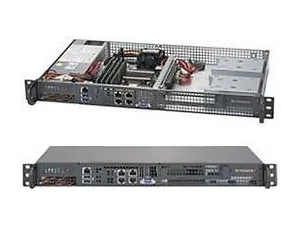

Supermicro SYS-5018D-FN4T(3YR) SuperServer 5018D-FN4T Server Barebone System - 1U Rack-mountable - Socket BGA-1667 - 1 x

Motherboard
Super X10SDV-8C-TLN4F
Processor/Cache
CPU:Intel Xeon processor D-1541
FCBGA 1667 supported
CPU TDP support 45W
System-on-Chip
System Memory
Memory Capacity:4x DDR4 DIMM sockets
Supports up to 128GB DDR4 ECC RDIMM
Supports up to 64GB DDR4 ECC/non-ECC UDIMM
Memory Type:2400/2133/1866/1600MHz ECC DDR4 SDRAM
DIMM Sizes:32GB, 16GB, 8GB, 4GB
Memory Voltage:1.2 V
Error Detection:Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board Devices
SATA:SoC controller for SATA3 (6Gbps) ports
Network Controllers:Dual LAN via Intel i350-AM2 Gigabit Ethernet
Dual LAN via SoC 10GBase-T
Virtual Machine Device Queues reduce I/O overhead
Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
1x Realtek RTL8201N PHY (dedicated IPMI)
IPMI:Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics:BMC integrated ASPEED AST2400
Input / Output
SATA:6x SATA3 (6Gbps) ports
LAN:2x RJ45 Gigabit Ethernet LAN ports
2x RJ45 10GBase-T ports
1x RJ45 Dedicated IPMI LAN port
USB:2x USB 3.0 ports (rear)
Serial Port:1x COM port (header)
DOM:1x SATA DOM (Disk on Module) power connector
VGA:1x VGA Port
Others:TPM 1.2 header
Chassis
Form Factor:1U Rackmount
Model:CSE-505-203B
Dimensions and Weight
Available Colors:Black
Front Panel
Buttons:Power On/Off button
System Reset button
LEDs:Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED
Information LED (temp., status)
Expansion Slots
PCI-E:1x PCI-E 3.0 x16 slot slot
1x M.2 PCI-E 3.0 x4, M Key 2242/2280
Drive Bays
HDD:2x 3.5" or 4x 2.5" internal SATA3 hard drive bays (optional)
System Cooling
Fans:Passive Heatsink, 40mm chassis fan
Power Supply
200W Low Noise AC-DC power supply with PFC
AC Voltage:100 - 240V, 50-60Hz, 2.6 Amp Max
+5V:8.0 Amp (max.)
+5V standby:2.0 Amp (max.)
+12V:16 Amp (max.)
-12V:0.5 Amp (max.)
+3.3V:8.0 Amp (max.)
Certification: Gold Certified
System BIOS
BIOS Type:64Mb SPI Flash EEPROM with AMI UEFI BIOS
BIOS Features:Plug and Play (PnP)
APM 1.2
DMI 2.3
PCI 2.3
ACPI 1.0 / 2.0 / 3.0 / 4.0
USB Keyboard support
Hardware BIOS Virus protection
SMBIOS 2.7.1
UEFI
RTC (Real Time Clock) Wakeup
Operating Environment / Compliance
RoHS:RoHS Compliant
Environmental Spec.:Operating Temperature: 10^oC to 35^oC (50^oF to 95^oF)
Non-operating Temperature: -40^oC to 70^oC (-40^oF to 158^oF)
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Item Dimension (L inchxW inchxH inch)
19 x 26 x 7 Weight
25.00lb Warranty Information
3 Year
