Product Overview
CKET ,UP TO 32GB DDR3,DUAL INTEL 82574L GIGABIT ETHERNET CONTROLLERS,450W HIGH-E
Technical Specifications

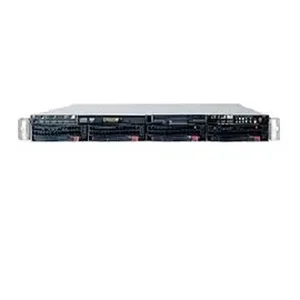

SUPERMICRO SYSTEM SERVER BAREBONE SYS-5016I-URF(3YR) 1U XEON X3400 LGA1156 DDR3 PCI EXPRESS BLACK RETAIL
1. Intel? Xeon? X3400 / L3400 series, Core? i3 & Pentium? processors with LGA 1156 socket
2. Up to 32GB DDR3 1333/1066/800MHz ECC Registered DIMM or 16GB Unbuffered DIMM
3. Left Slot (Full-height / Full-length):1 (x16) PCI-E 2.0 + UIO
4. Right Slot: 1 (x8) PCI-E 2.0 slot
4. Dual Intel? 82574L Gigabit Ethernet Controllers
6. 4 x 3.5" Hot-swap SATA Drive Bays, For Customizable Storage
7. 450W High-efficiency Redundant Power Supply -------------------------
VENDOR: Supermicro
MPN: SYS-5016I-URF(3YR)
UPC:
DETAIL SPECIFICATIONS
MOTHERBOARD: Super X8SIU-F
PROCESSOR/CACHE CPU LGA 1156 Socket Intel Xeon X3400 series Intel Xeon L3400 series Intel Core i3 Intel Pentium G6950 Intel Celeron G1101
SYSTEM MEMORY MEMORY CAPACITY: `x 240-pin DDR3 DIMM sockets Supports up to 32 GB DDR3 ECC Registered memory (RDIMM) in 6 DIMM sockets Supports up to 16 GB DDR3 ECC Un-Buffered memory (UDIMM) in 4 DIMM sockets / 1066 / 800 MHz Dual Core processors of Ci3 and Pentium: support ECC UDIMM only Note: Supports 1-Gb and 2-Gb x8 devices only - Intel 3420 / 3400 Chipset Memory Requirements MEMORY TYPE: 1333 / 1066 / 800 MHz ECC Registered / ECC Unbuffered DDR3 SDRAMό-bit, 240-pin gold-plated DIMMs DIMM SIZES: [GB, 2GB, 4GB, 8GB MEMORY VOLTAGE: 1.5 V ERROR DETECTION: Corrects single-bit errors Detects double-bit errors (using ECC memory)
ON-BOARD DEVICES CHIPSET: Intel 3420 chipset SATA:`x SATA (3 Gbps) RAID 0, 1, 5, 10 support (Windows) RAID 0, 1, 10 support (Linux) IPMI: Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Nuvoton WPCM450 BMC NETWORK CONTROLLERS: Dual Intel 82574L Gigabit Ethernet Controllers Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output [x Realtek RTL8201N PHY (dedicated IPMI) VGA: Matrox G200eW 16MB DDR2 SUPER I/O: Nuvoton W83627DHG UBE Clock Generator: CK505
INPUT / OUTPUT SERIAL ATA:` SATA ports ` SATA hard drives supported LAN :\x RJ45 LAN ports [x RJ45 Dedicated IPMI LAN port USB: [x USB rear ports [x USB Type-A \x USB internal header (4 ports) Total 7 USB 2.0 Compliant VGA:[x VGA port KEYBOARD / MOUSE: PS/2 keyboard and mouse ports SERIAL PORT / HEADER:[x Fast UART 16550 serial port [x internal header
DIMENSIONS Height: 1.7" (43mm) Width: 17.2" (437mm) Depth: 25.6" (650mm) Gross Weight: 38 lbs (16.5kg) Available Colors: Black
FRONT PANEL BUTTONS Power On/Off button System Reset button LEDS Power LED Hard drive activity LED \x Network activity LEDs System Overheat LED PORTS 2x USB DB9 COM port tray (Optional - in place of floppy drive)
EXPANSION SLOTS Left Slot: 1 (x16) PCI-E 2.0 slot or 1 UIO Right Slot: 1 (x8) PCI-E 2.0 (Low-Profile - 5.6" depth)
DRIVE BAYS Hot-swap: 4x 3.5" SAS / SATA Hot-swap drive trays
PERIPHERAL DRIVES DVD-ROM: Slim 8x DVD, 24x CD, DVD-ROM drive
SAS/SATA BACKPLANE 1U SAS / SATA Backplane w/ SES2 Enclosure Management
SYSTEM COOLING Fans: 4x Cooling Fans Shroud: 1x Air Shroud
POWER SUPPLY 450W (1 + 1) Redundant AC power supply w/ PFC AC VOLTAGE :⎌ - 240V, 60-50Hz, 6.3-3.2 Amp +5V: Ν Amp +5V STANDBY:] Amp +12V: Ω Amp -12V :Z.6 Amp +3.3V: Ν Amp
SYSTEM BIOS BIOS TYPE: ΤMb SPI Flash EEPROM with AMI BIOS BIOS FEATURES: DMI 2.3 PCI 2.3 ACPI 1.0 / 2.0 USB Keyboard support SMBIOS 2.3
ROHS: RoHS Compliant
WARRANTY INFORMATION:] Years
